Linkage Sprayers
900-1150L LM Series

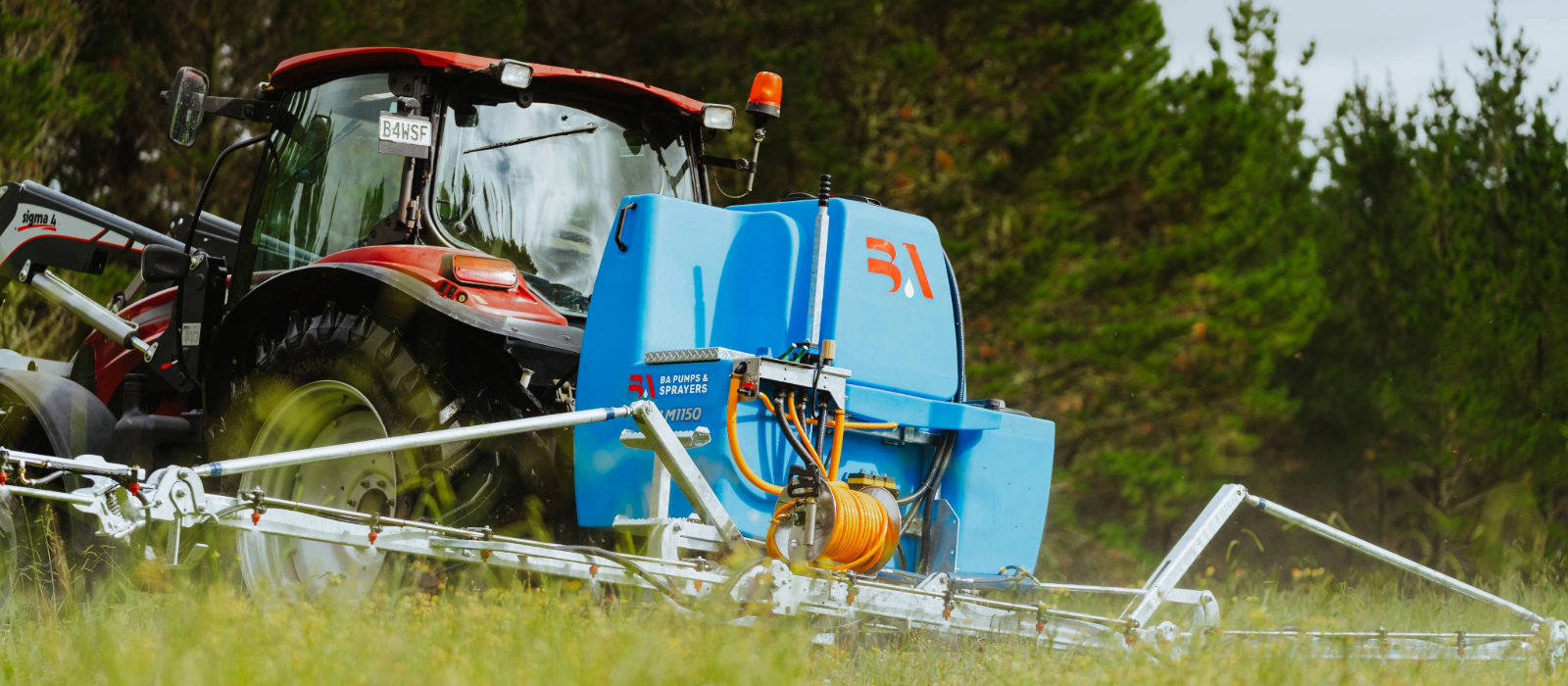

The LM Series signifies a shift towards a more efficient, safer, and productive spraying solution allowing you to cover more ground in less time.
8-12
M
Boom Length
75
LPM
Bertolini POLY Pump
Safer, Faster, Stronger

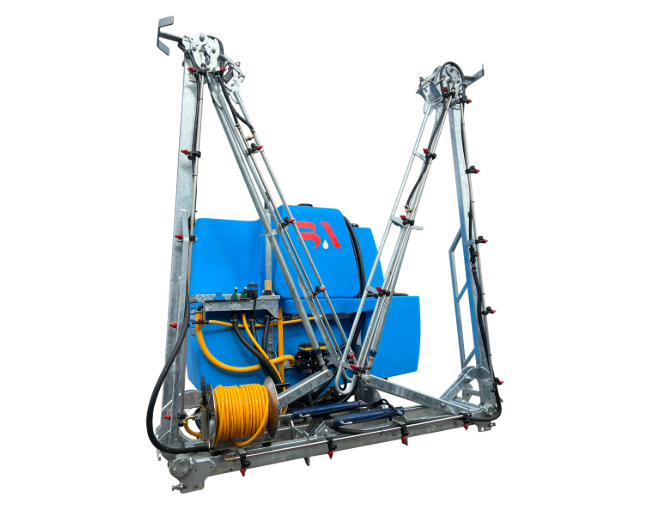

The innovative LM Linkage Sprayer has been designed for a diverse range of spraying applications and built to be safer, faster, and stronger.

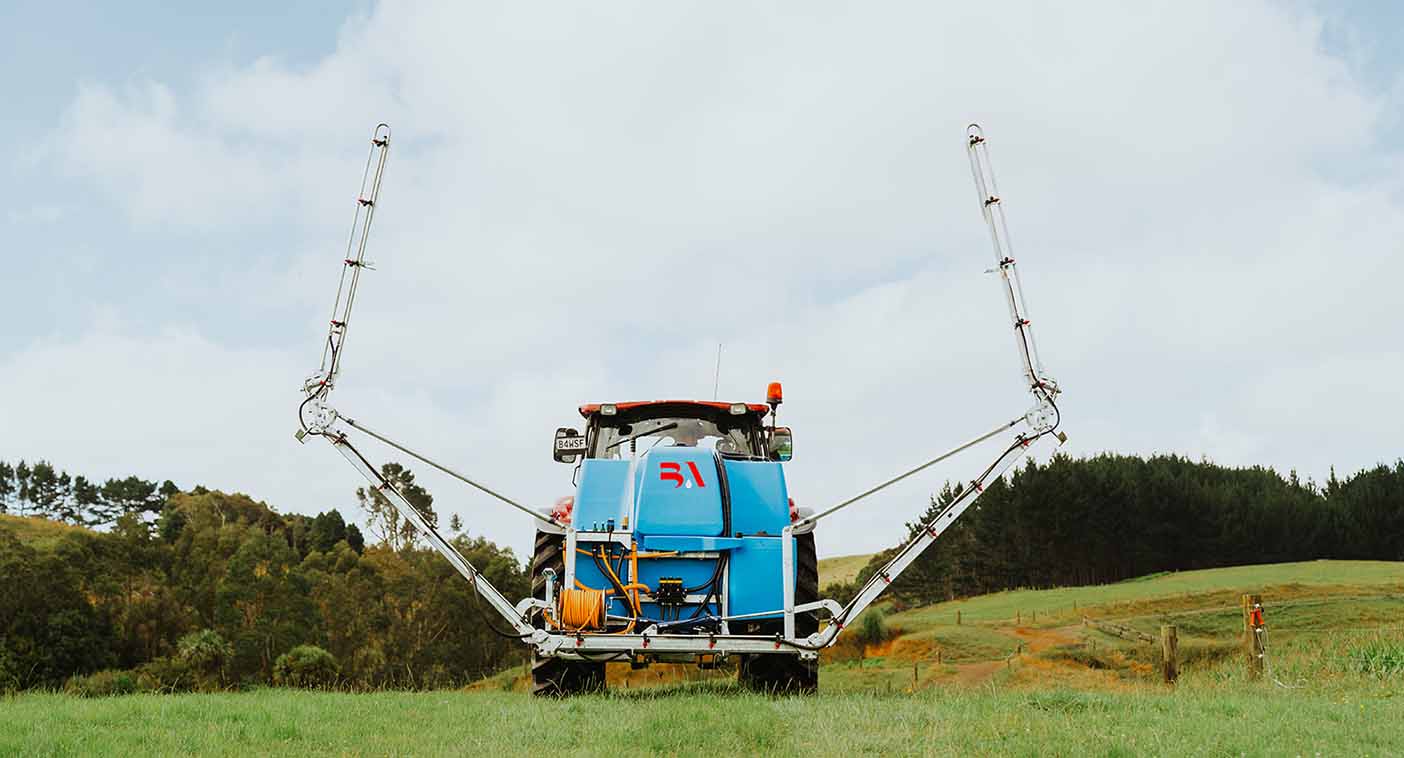

Combine the LM Sprayer with the fully hydraulic M Boom and you’ll never spray the same way again!
Standard Features:
- Built-in 10l handwash tank and 60l flush tank.
- Galvanised 3PTL frame.
- T-Shape polyethylene tank.
- Easy access steps and grab handles for safe access to the top lid.
- Bertolini 75-Litre POLY Pump for liquid fertiliser readiness.
- The unique M Boom is fully hydraulic allowing full control from the tractor seat.

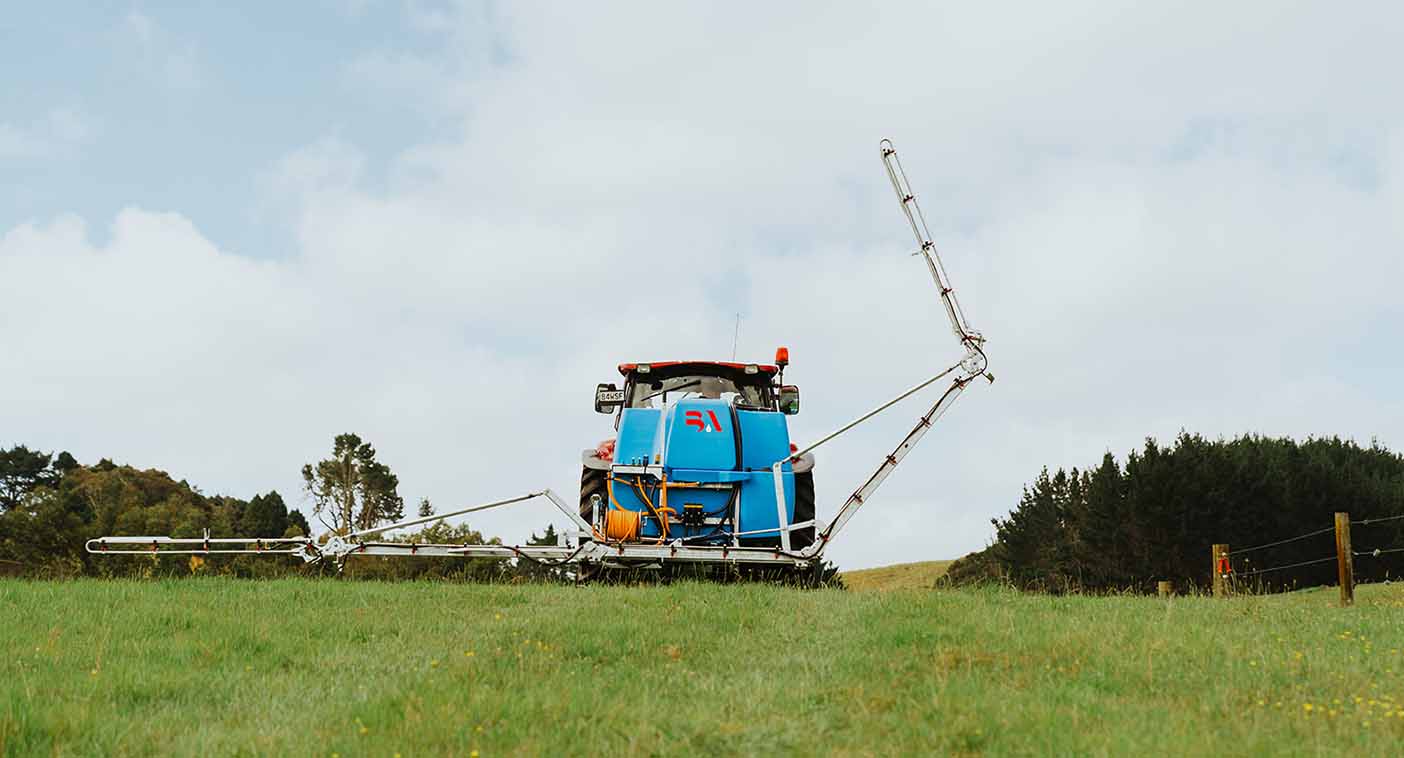

- Wing lift allows you to move the boom with the contour of the terrain.
- Built-in breakaways ensure you can safely clear obstacles.
- A smooth outer boom shape minimising fence hookups.
The LM Series is available now exclusively from selected BA Dealers. Keep scrolling to find out more.

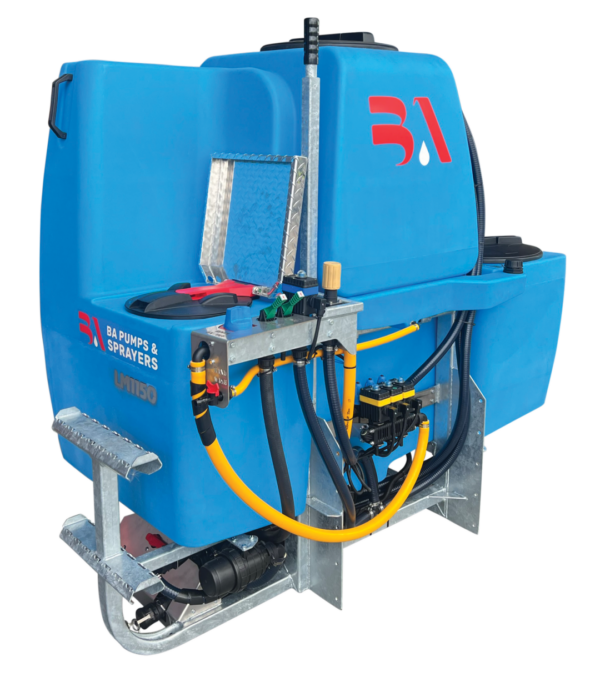

LM Tank Features
1

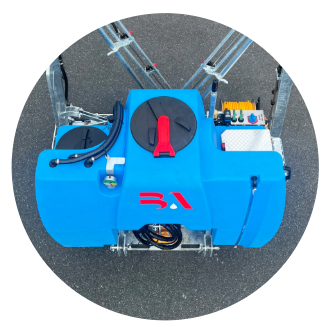

900L and 1150L T-Shape Tank (Reg. Design): Protects working surfaces from mud and debris, whilst keeping weight forward.
2

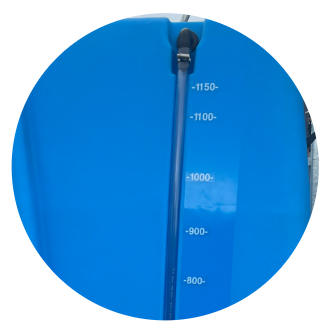

Moulded tank calibration strip, with sight glass level indicator for clear visibility while operating.
3

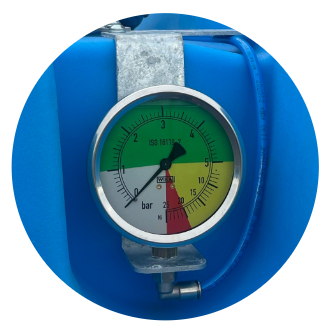

Pressure Gauge: Fitted on the cab side of the tank so you can check the pressure from the tractor.
4

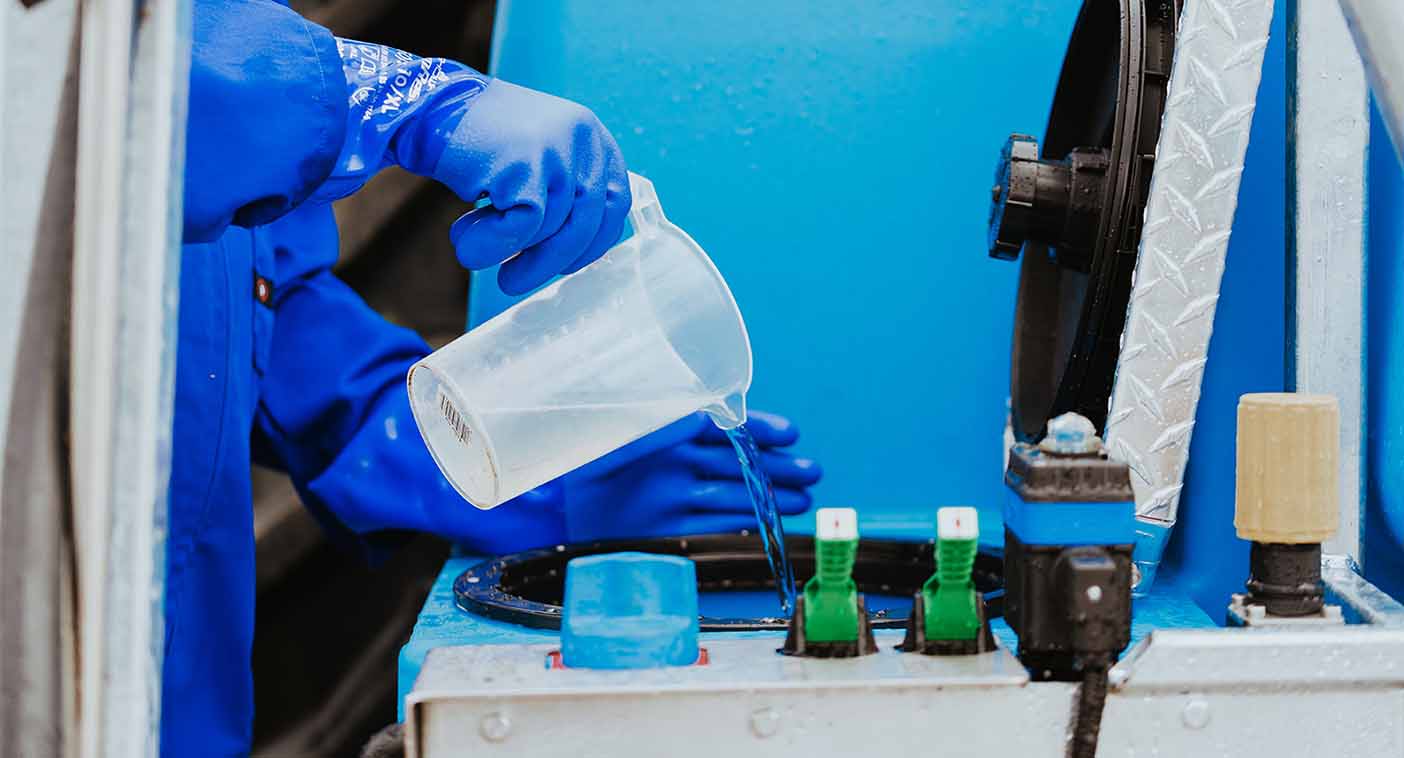

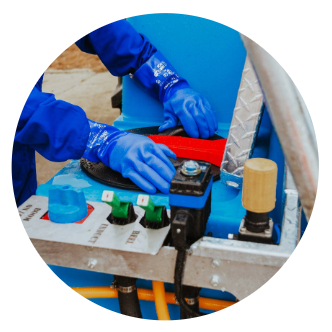

Ergonomic Operator Station: Product loading made easy with a built-in induction hopper.
5

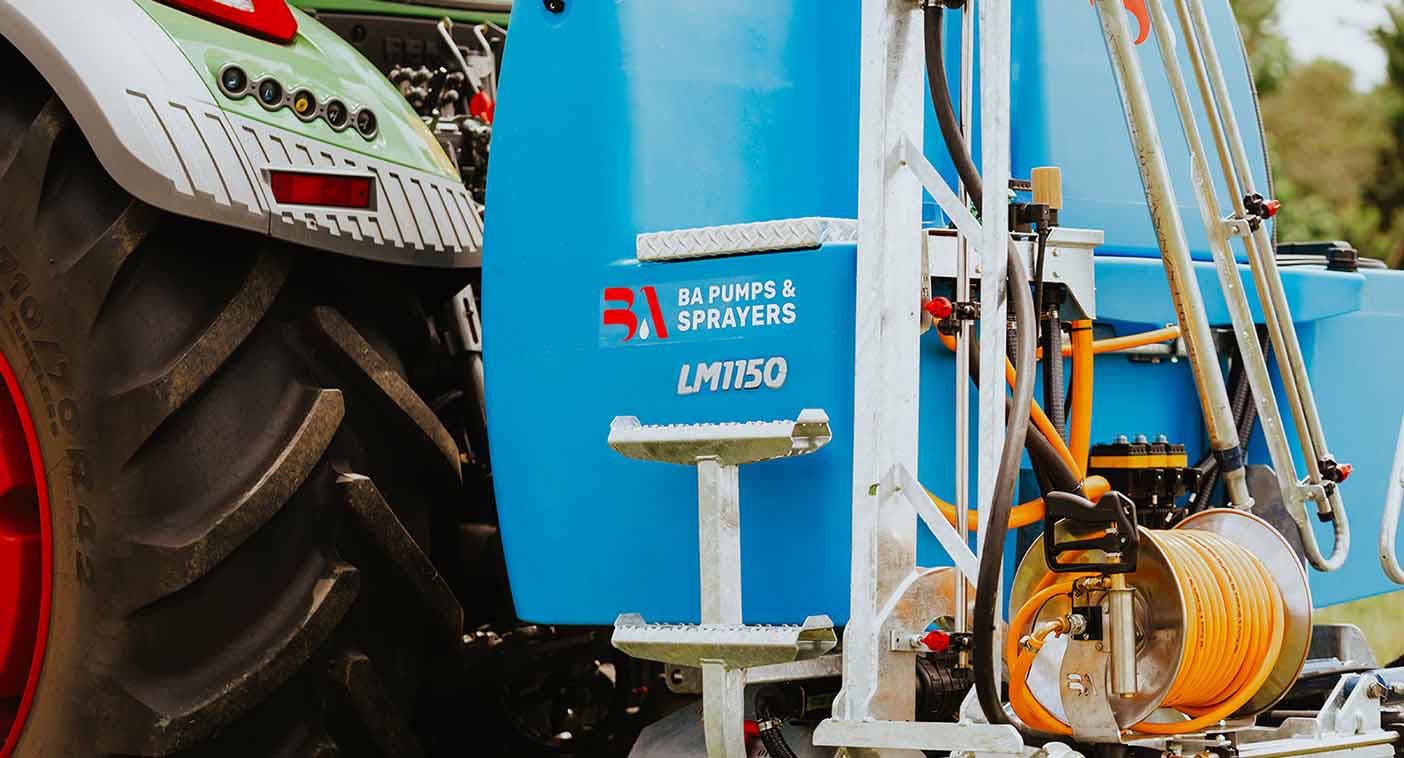

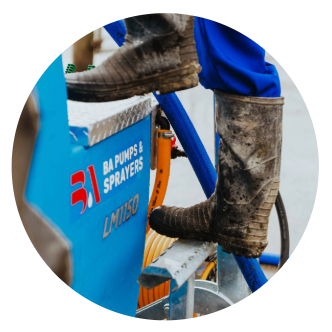

Operator safety: Easy access steps and grab handles for safe access to the top lid.
6

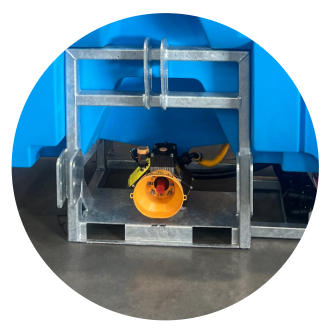

Easy to move: Fork lift pockets in the tank frame make it easy to move your sprayer where you need it.
7

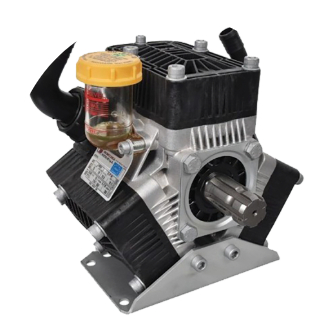

Bertolini 75-Litre POLY Pump: Standard for liquid fertiliser readiness.
8

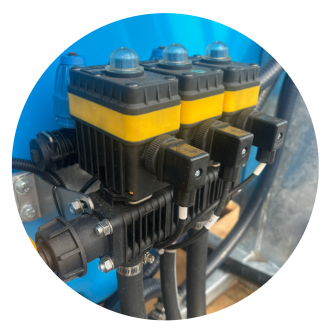

3-Section In-Cab Electric Control: Enables pressure adjustment on the move.
9

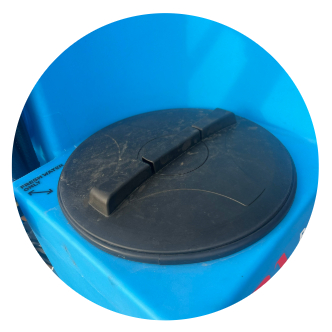

Flush Tank and Hand Wash Tank: Ensures pump and lines are clean and prioritises operator safety.
1
2
3
4
5
6
7
8
9

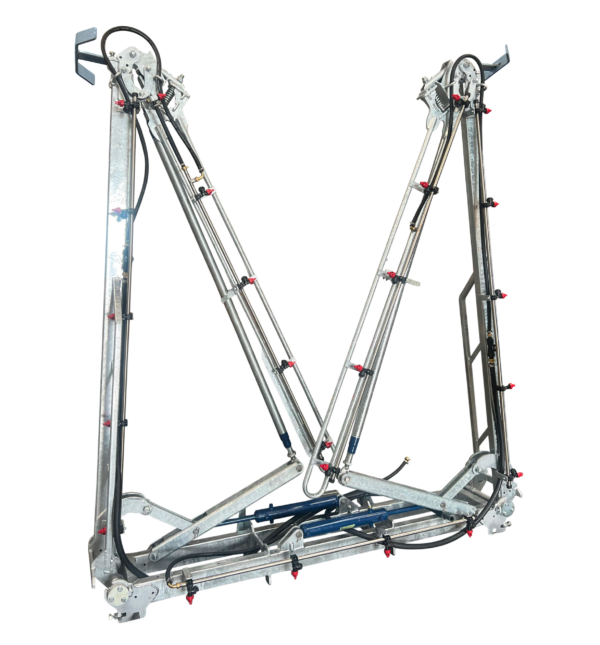

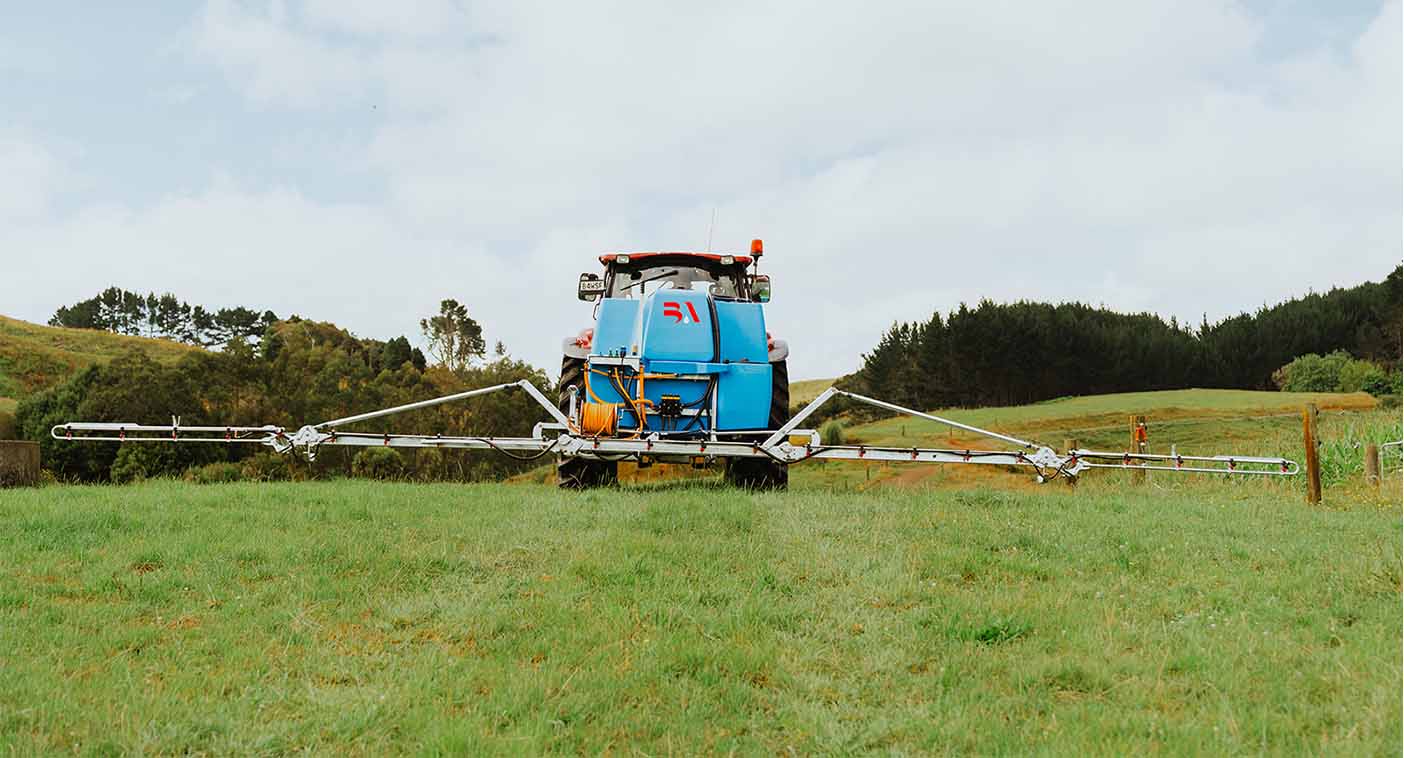

M Boom Features
1

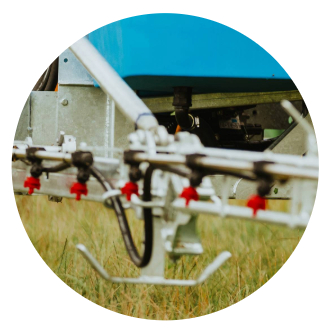

Skid plates: Protect the boom on rough terrain.
2

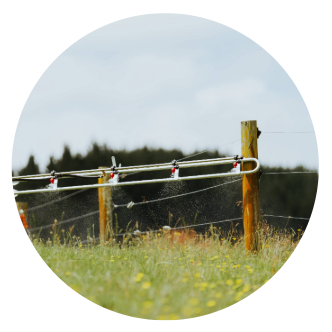

Built-in Breakaways: Safely clears obstacles during operation.
3

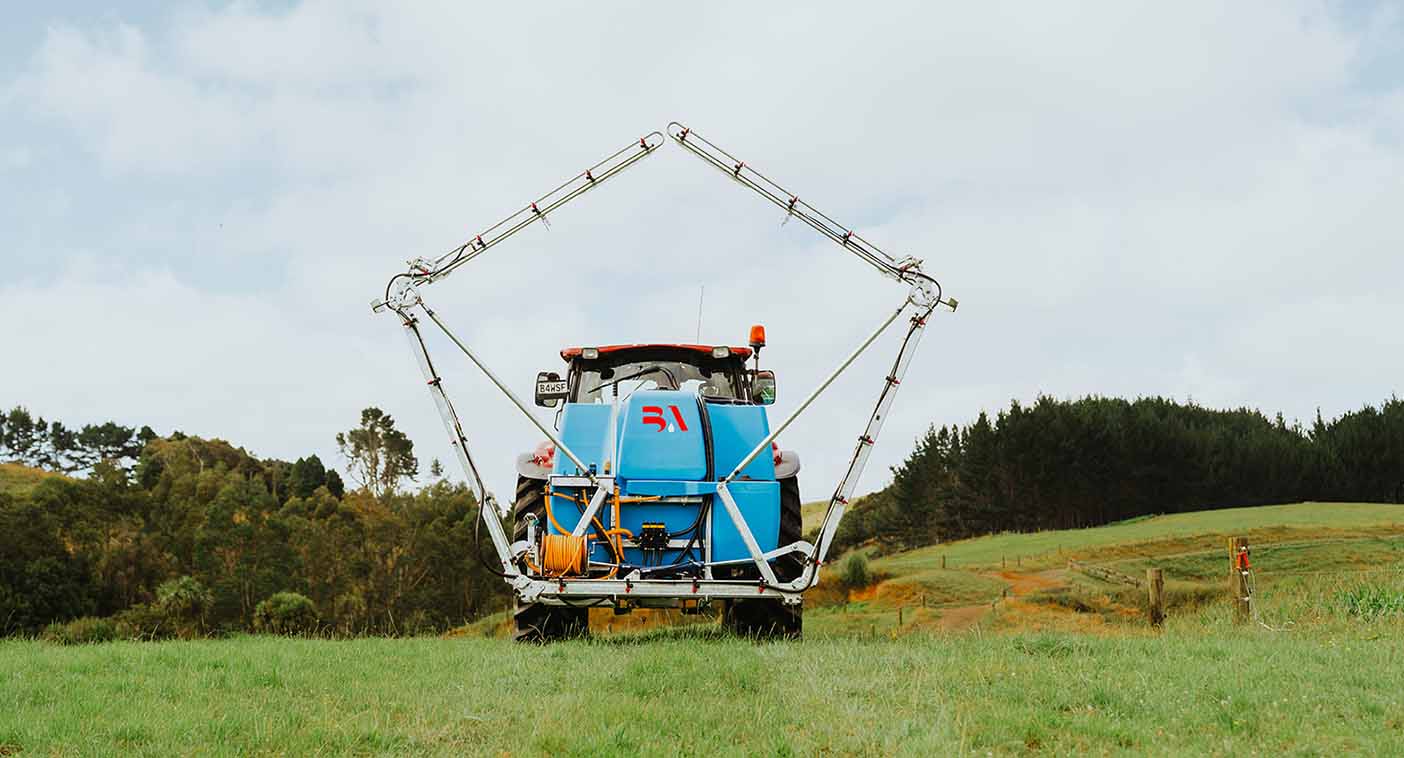

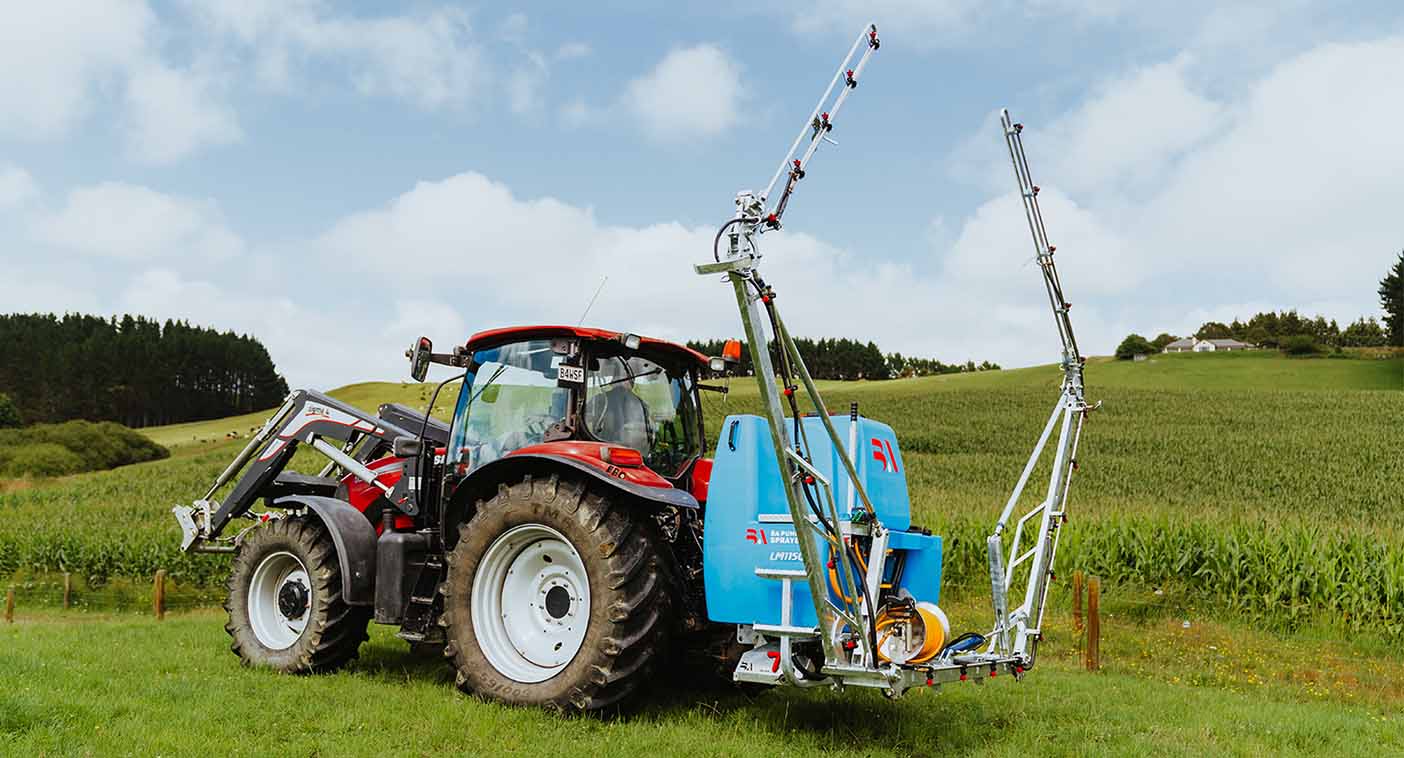

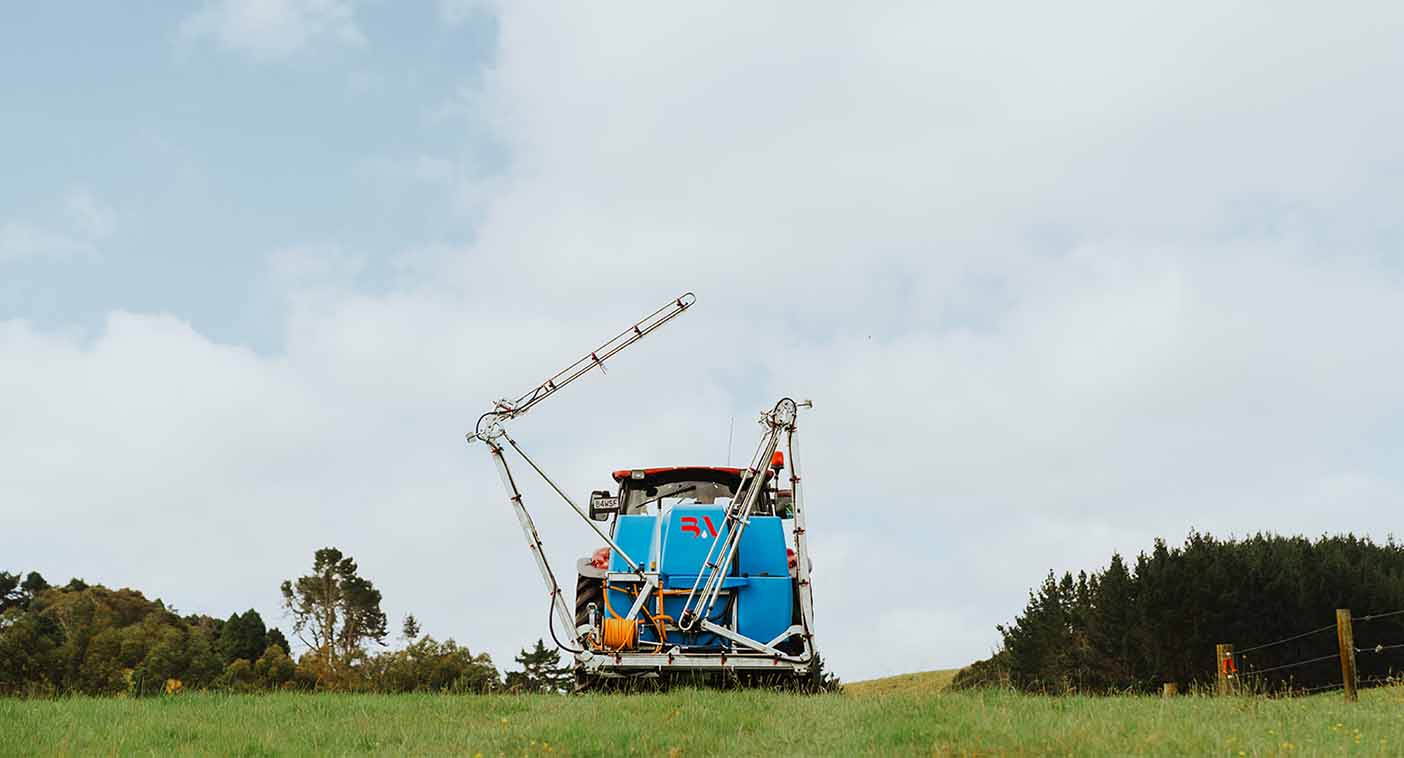

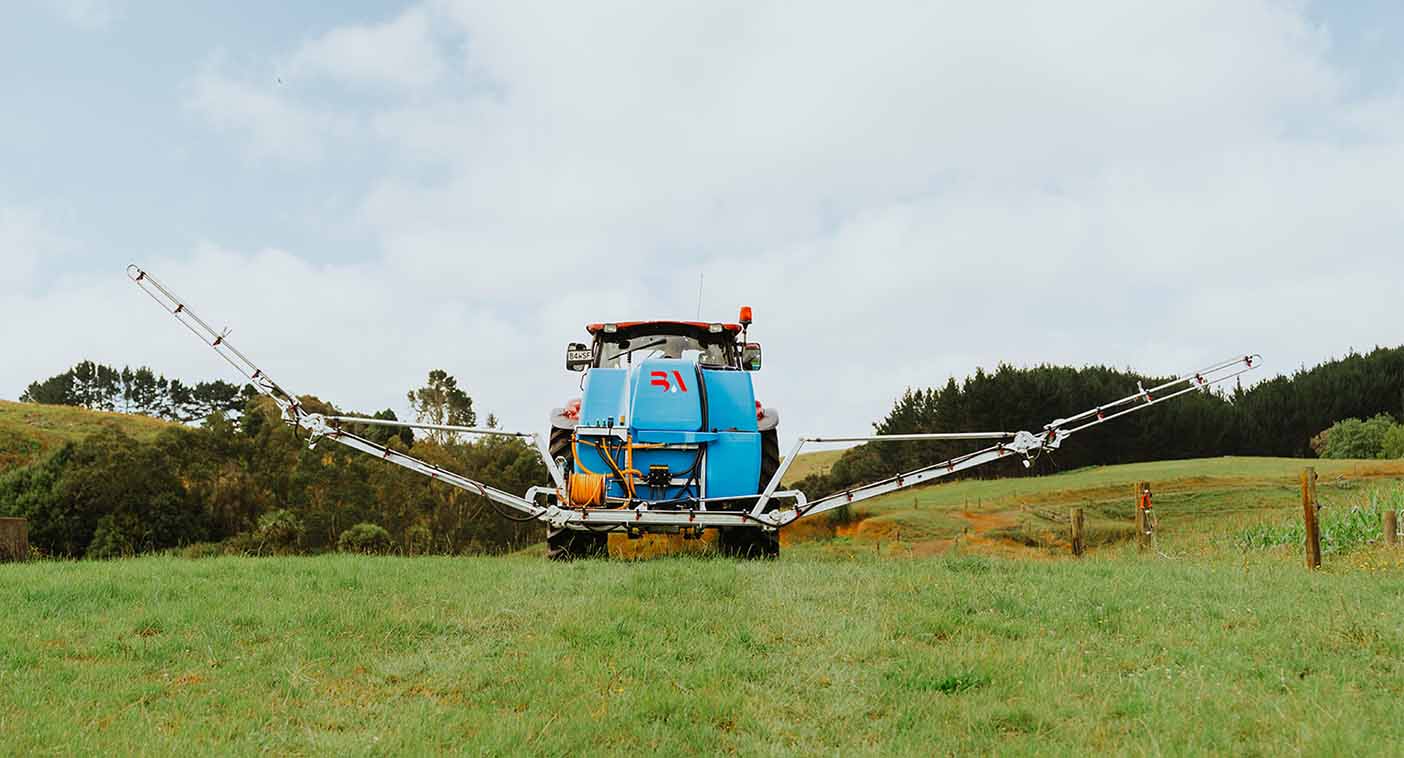

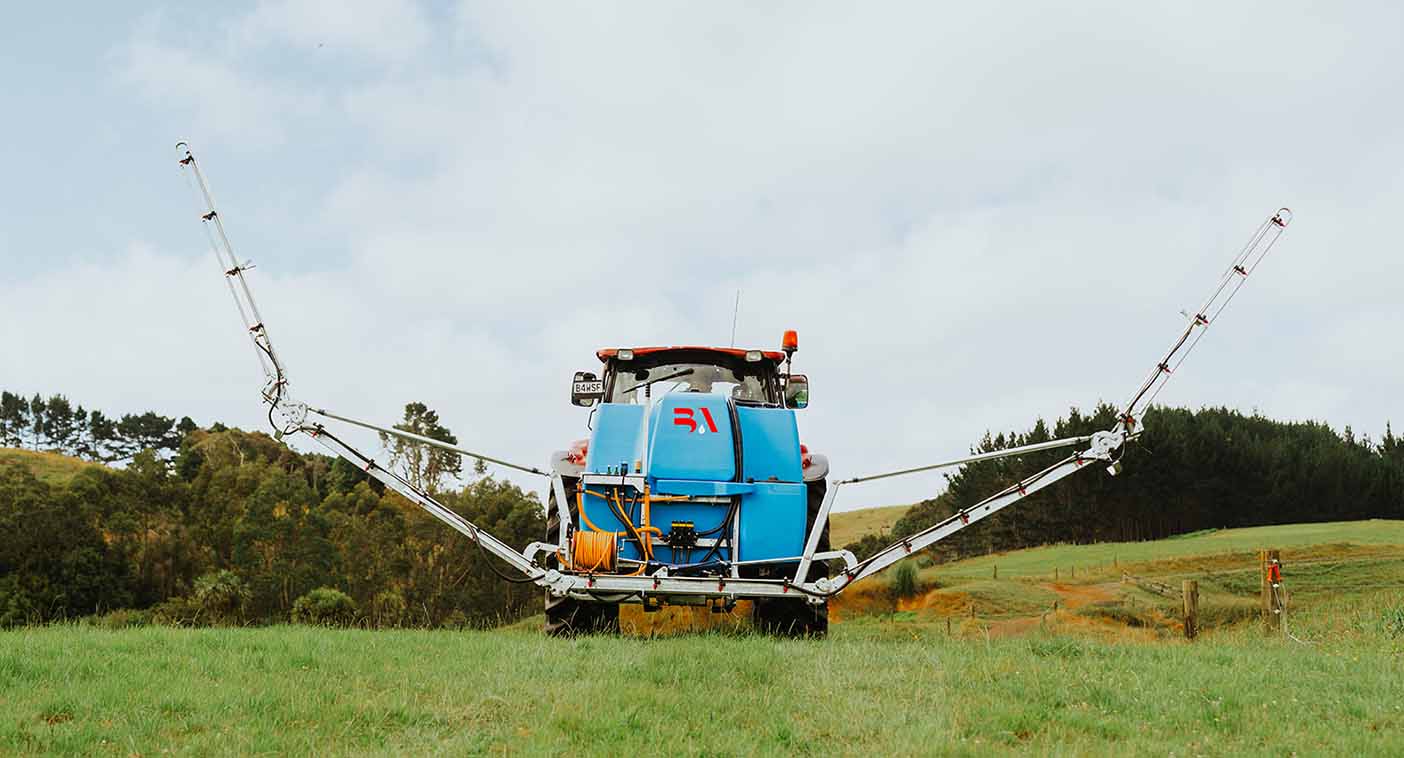

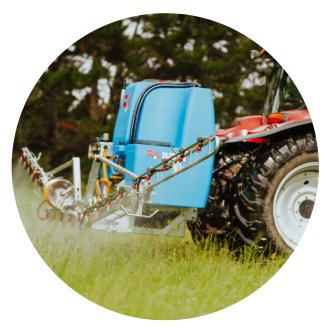

M Folding Mechanism with Wing Lift: Operated by only 2 tractor remotes, a patent-pending feature.
4

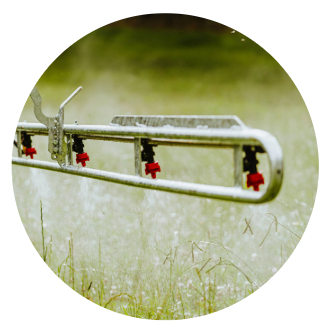

Smooth Outer Shape: Minimises fence hook-ups.
5

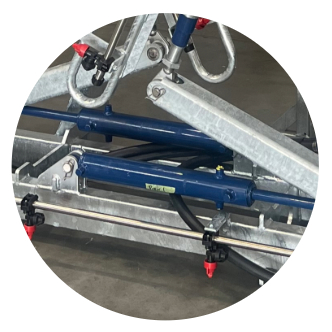

Fully Hydraulic Operation: No operator intervention needed, full control from the tractor seat.
6

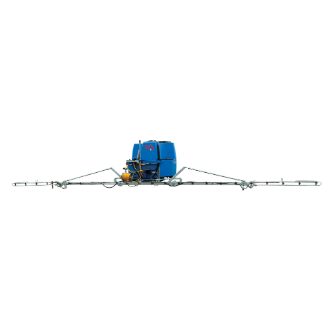

Cover more ground in less time: Choose from 10 and 12 metre boom sizes.
1
2
3
4
5
6
Models
Filter by:
LM900X-2073-8M
900L, 8M Proline Manual Fold Boom
LM900X-2073-12HM
900L, 12M M Boom
LM1150X-2073-10M
1150L, 10M Manual Boom
LM1150X-2073-12HM
1150L, 12M M Boom
LM1150X-2073-12HM-AR
1150L, 12M M Boom, ARC
Model
Tank Size
Boom
Control
Pump
Chemical Induction
LM900X-2073-8M
900L
8m
3 section in-cab electric control with pressure gauge
Bertolini POLY2073 | 75LPM | 215PSI
Built-in
More
Compare
Enquire
LM900X-2073-12HM
900L
12m
3 section in-cab electric control with pressure gauge
Bertolini POLY2073 | 75LPM | 215PSI
Built-in
More
Compare
Enquire
LM1150X-2073-10M
1150L
10m
3 section in-cab electric control with pressure gauge
Bertolini POLY2073 | 75LPM | 215PSI
Built-in
More
Compare
Enquire
LM1150X-2073-12HM
1150L
12m
3 section in-cab electric control with pressure gauge
Bertolini POLY2073 | 75LPM | 215PSI
Built-in
More
Compare
Enquire
LM1150X-2073-12HM-AR
1150L
12m
Jackal Auto Rate Control
Bertolini POLY2073 | 75LPM | 215PSI
Built-in
More
Compare
Enquire
Model Specifications
Model Specifications
900L, 8M Proline manual fold boom, 3 section electric valves, induction hopper, flush tank, hand wash tank .
Tank Size
900L
Boom
8m
Pump
Bertolini POLY2073 | 75LPM | 215PSI
Control
3 section in-cab electric control with pressure gauge
Chemical Induction
Built-in
Reel
Optional 50m Stainless Steel Reel
Drive
PTO
Other
-
900L, 12M hydraulic M fold boom, 3 section elec, induction hopper, flush tank, hand wash tank . Optional 10M M Boom.
Tank Size
900L
Boom
12m
Pump
Bertolini POLY2073 | 75LPM | 215PSI
Control
3 section in-cab electric control with pressure gauge
Chemical Induction
Built-in
Reel
-
Drive
PTO
Other
-
1150L, 10M manual fold boom, 3 section electric valves, flush tank, hand wash tank . Optional 12M Manual Boom.
Tank Size
1150L
Boom
10m
Pump
Bertolini POLY2073 | 75LPM | 215PSI
Control
3 section in-cab electric control with pressure gauge
Chemical Induction
Built-in
Reel
-
Drive
PTO
Other
-
1150L, 12M hydraulic M fold boom, 3 section electric control, induction hopper, flush tank, hand wash tank . Optional 10M M Boom.
Tank Size
1150L
Boom
12m
Pump
Bertolini POLY2073 | 75LPM | 215PSI
Control
3 section in-cab electric control with pressure gauge
Chemical Induction
Built-in
Reel
-
Drive
PTO
Other
10L hand wash tank | 60L flush tank
1150L, 12M hydraulic M fold boom, 3 section electric control, induction hopper, flush tank, hand wash tank , and Auto Rate Control.
Tank Size
1150L
Boom
12m
Pump
Bertolini POLY2073 | 75LPM | 215PSI
Control
Jackal Auto Rate Control
Chemical Induction
Built-in
Reel
-
Drive
PTO
Other
10L hand wash tank | 60L flush tank | Auto Rate Control
Model Specifications
1
Try comparing to:
2
Try comparing to:
3
Try comparing to:
1
Items for comparison
[Reset]
What our customers say
“What you get for the price is incredible, especially given the 12 Metre M Boom is fully hydraulic and has the strength and resilience farmers have come to expect from a BA sprayer."
Ryan Cannell, Te Aroha
LM1150X-2073-12HM
Rotopai Farms believes in the economic advantages of the LM sprayer, estimating a payback period of 2 to 2.5 years
Rotopai Farms, Wairapa
LM1150X-2073-12HM
“Spraying is no longer a chore, the simplicity, the extra capacity, and fully hydraulic boom with wing lift means I’ve halved my time in the paddock so I can spend that time doing other jobs around the farm. I love it.”
Ryan Cannell, Te Aroha
LM1150X-2073-12HM
CLICK TO VIEW THE LM SERIES IN ACTION
1
/
11
Upgrades & Accessories
ARAG Foam Marker
ARAG Foam Marker
Includes compressor, concentrate tank, mounting brackets, switch box, wiring loom, and a hose kit.
GPS Units
GPS Units
Work faster and easier with our range of TeeJet Matrix and Hexagon Ti Series GPS units.

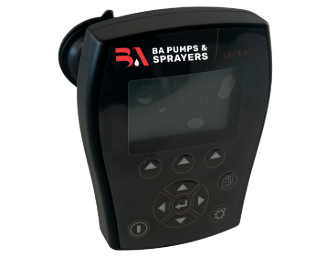

Jackal Auto Rate Controller
Jackal Auto Rate Controller
The Jackal 3 section spray controller offers great flexibility and simple operation.

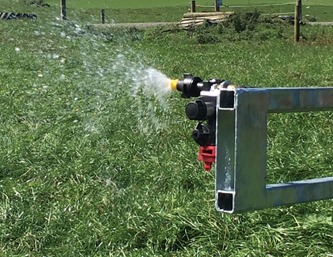

TeeJet XP Boomjet Fenceline Nozzle
TeeJet XP Boomjet Fenceline Nozzle
Includes solenoid and in-cab switch to easily spray fence lines with up to 3m coverage.

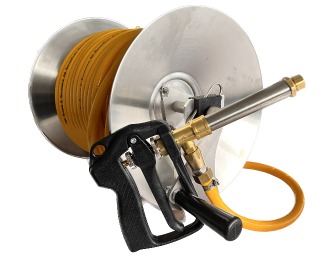

50m Stainless Steel Hose Reel
50m Stainless Steel Hose Reel
Available with or without 50m hose and Spot 300 Spray Gun.
