Trailed Sprayers
TSX400 Series

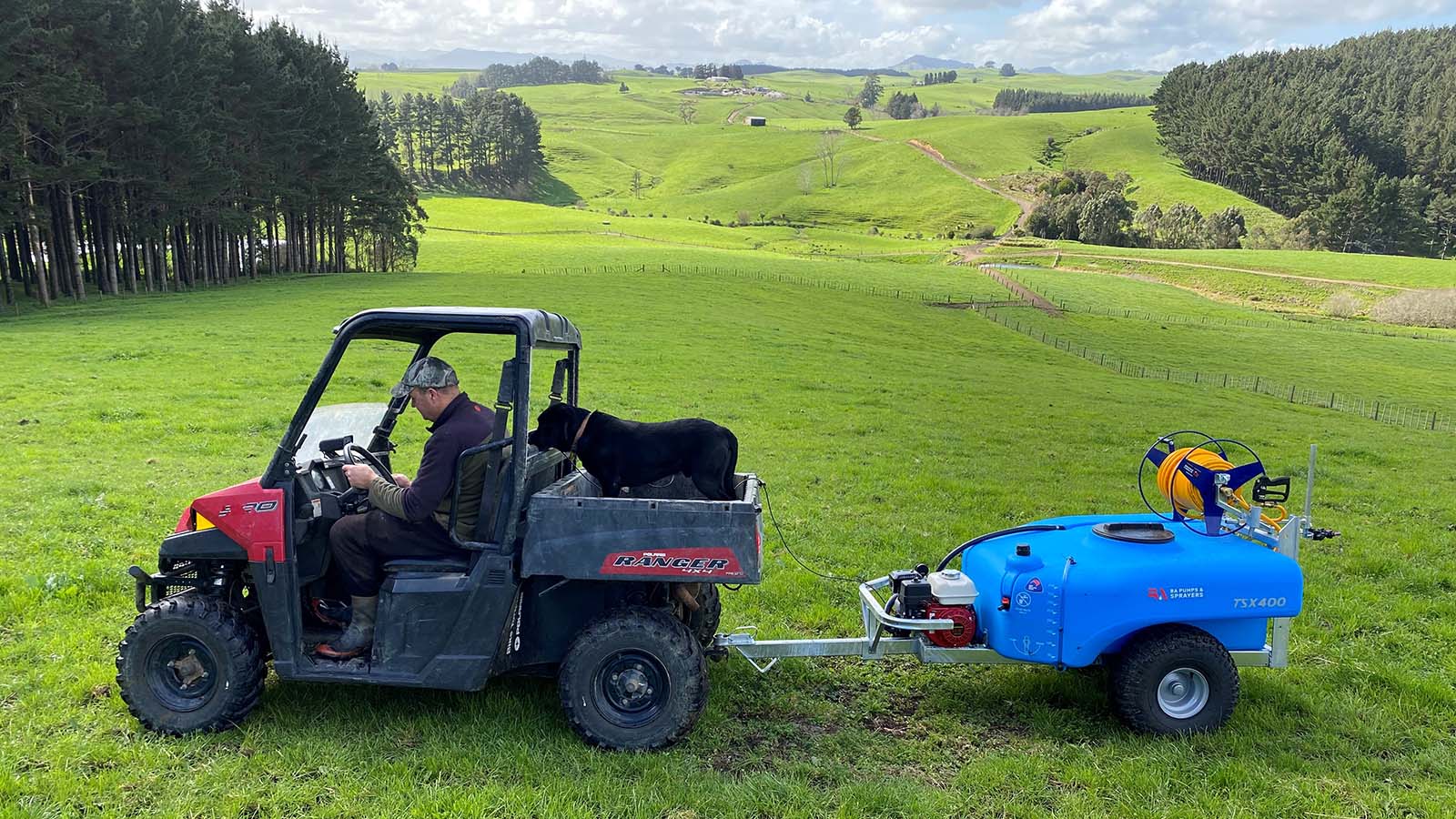

![Farmer and his dog sat in the ATV with a TSX400 on the back](https://der0u4l55orz6.cloudfront.net/2022/11/26143332/Landing-page-TSX400-hero-image-1600-x-900.jpg)
The TSX400, with it’s engineer designed chassis, is light and agile with a purpose moulded tank for an ultra-low centre of gravity. Ideal for towing with ATVs and UTVs, even on the toughest of terrain.
400
L
Tank Size
3-6
M
Boom Options
![](https://bapumpsandsprayers.co.nz/wp-content/themes/baps/images/bg-info.png)

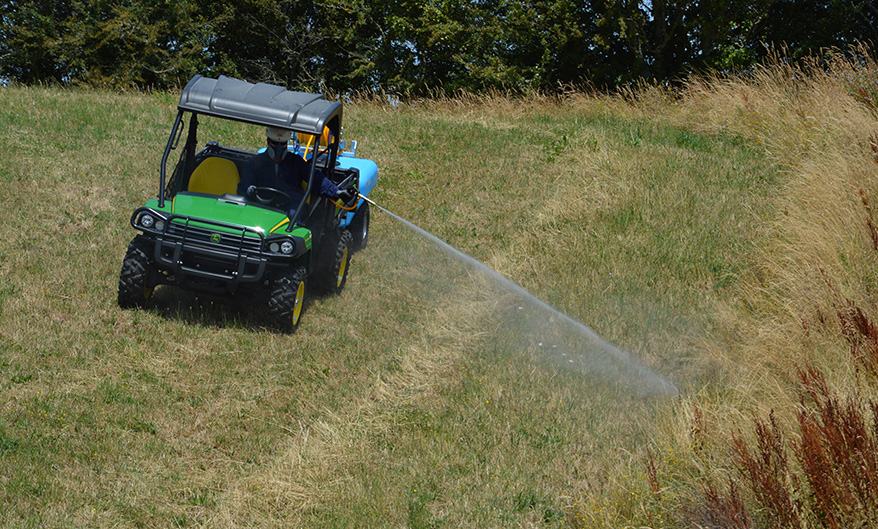

![Spraying with a TSX400 Sprayer](https://der0u4l55orz6.cloudfront.net/2022/11/26143332/Product-Page-TSX400-Overview-Image-878x529-3.jpg)
Standard Features
- Low centre of gravity for maximum stability.
- Fully galvanised, heavy-duty RHS chassis.
- 400L Polyethylene tank with integrated mudguards.
- Smooth riding knobbly ATV tyres.
- Integrated 2 litre hand wash tank.
- Large suction well & drain tap, with 4mm steel.
- Skid plate for full sump protection.
- Moulded tank calibration strip, with sight tube and level float.
- Pump protection bar.
Features
![Honda Engine](https://der0u4l55orz6.cloudfront.net/2022/09/26143332/My-project-1-2.jpg)
1
Genuine Honda engine powering the Bertolini diaphragm pump.
![Handwash tank](https://der0u4l55orz6.cloudfront.net/2022/09/26143332/Website-Features-Template-1.jpg)
2

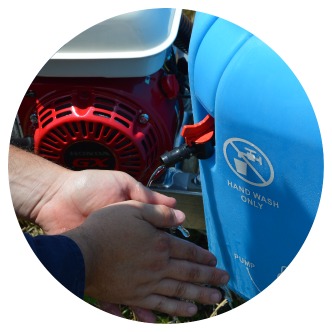

Integrated handwash tank for user convenience and job safety.
![400L tank](https://der0u4l55orz6.cloudfront.net/2022/09/26143332/Website-Features-Template-1-1.jpg)
3

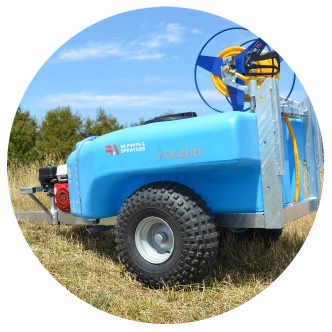

Innovative 400L tank design to provide a low centre of gravity for added stability.
![Smart-Fit accessories](https://der0u4l55orz6.cloudfront.net/2022/09/26143331/Website-Features-332-1.jpg)
4

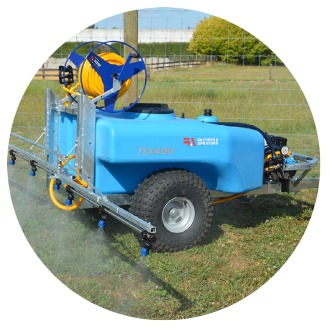

Modular Smart-Fit accessory designs for quick installation and easy use.
![Moulded tank](https://der0u4l55orz6.cloudfront.net/2022/11/26143331/Website-Features-332-1-1.jpg)
5

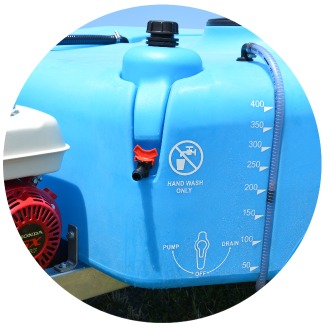

Moulded tank calibration strip, with sight glass level indicator for clear visibility while operating.
![Knobbly tyres](https://der0u4l55orz6.cloudfront.net/2022/09/26143331/Website-Features-332-1-2.jpg)
6

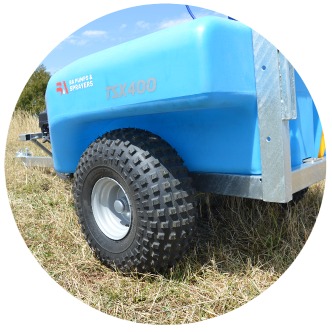

Smooth riding knobbly ATV tyres with integrated mudguards for superior grip and cleaner travelling.
![Suction well](https://der0u4l55orz6.cloudfront.net/2022/09/26143331/Website-Features-332-1-3.jpg)
7

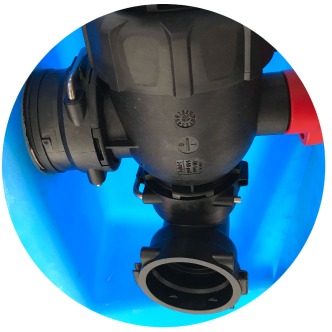

Large suction well and drain tap to easily achieve complete tank drainage, and cleaning.
![Sump protection plate](https://der0u4l55orz6.cloudfront.net/2022/09/26143331/Website-Features-332-1-4.jpg)
8

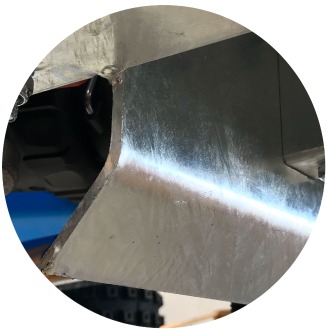

Sump protection plate to protect sump as well as deflect grass and debris from the drain tap.
![Hot dipped galvanised](https://der0u4l55orz6.cloudfront.net/2022/11/26143330/Website-Features-332-1-5.jpg)
9

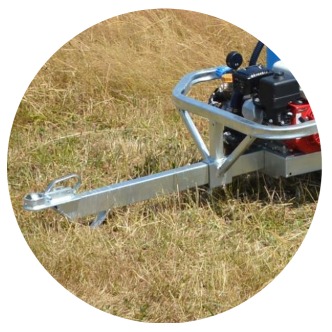

Full hot dipped galvanised heavy duty RHS chassis enhances product longevity.
![Tow hitch](https://der0u4l55orz6.cloudfront.net/2022/11/26143330/Website-Features-332-1-6.jpg)
10

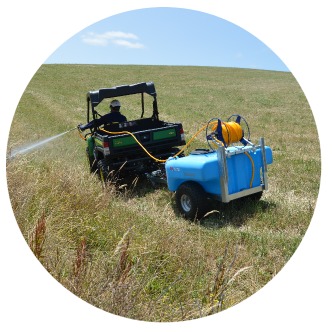

50mm tow hitch or 1"7/8 for hassle-free towing.
![Bertolini pump](https://der0u4l55orz6.cloudfront.net/2022/11/26143330/Website-Features-332-1-7.jpg)
11

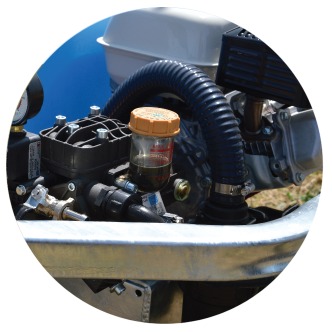

Bertolini pumps specifically suited for weed control and liquid fertiliser treatment.

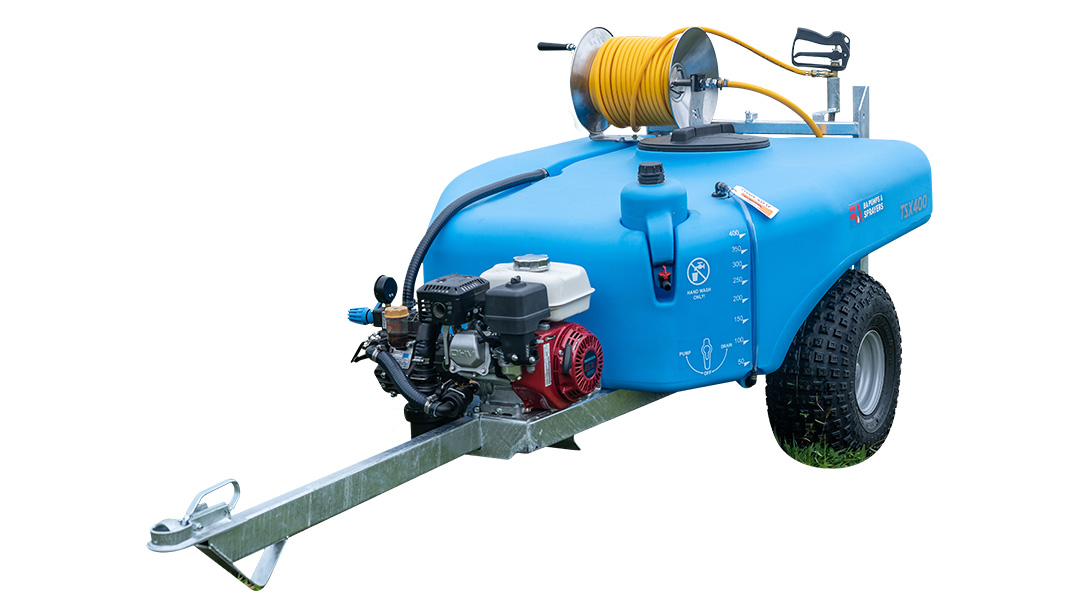

![Clearcut TSX400](https://der0u4l55orz6.cloudfront.net/2022/09/26143332/TSX.jpg)
1
2
3
4
5
6
7
8
9
10
11
TSX Series Product Range
![TSX400-2030SP](https://der0u4l55orz6.cloudfront.net/2023/01/26143243/666-x-514-TSX400-2030SP-1.jpg)

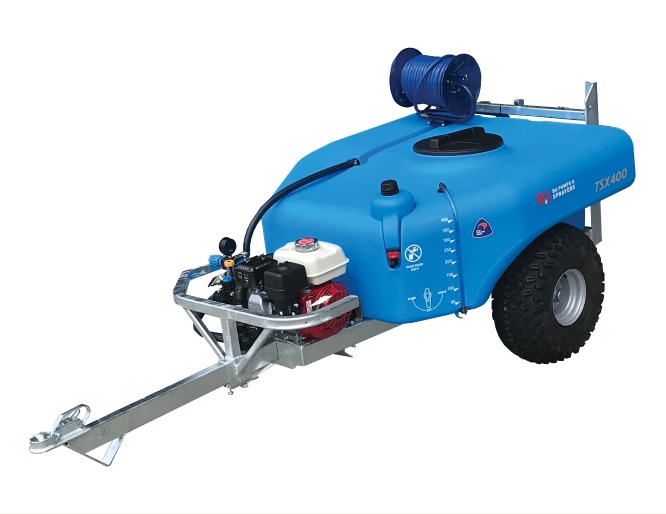

TSX400-2030SP
400L general purpose spray unit for medium-pressure gun boom spraying – 30m reel standard. Various boom spray options are available.
![TSX400-430SP](https://der0u4l55orz6.cloudfront.net/2023/01/26143243/666-x-514-TSX400-430SP-1.jpg)

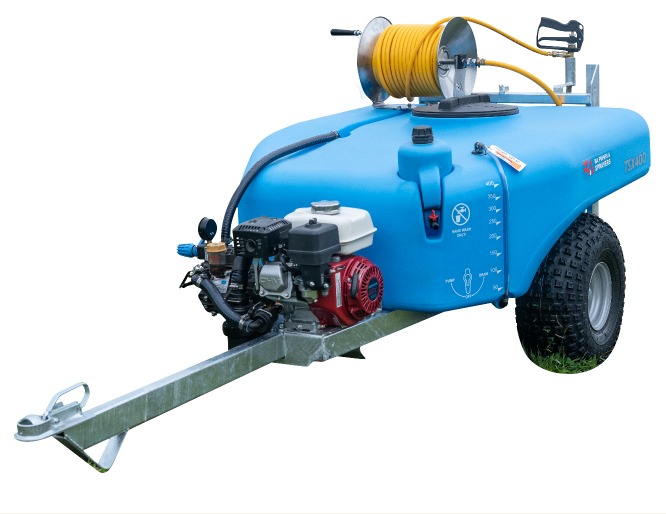

TSX400-430SP
400L general purpose spray unit for high-pressure gun work – 50m reel standard. Various boom spray options are available.
![TSX400-430H-QR100](https://der0u4l55orz6.cloudfront.net/2023/01/26143243/666-x-514-TSX400-430-QR100-1.jpg)
TSX400-430-QR100

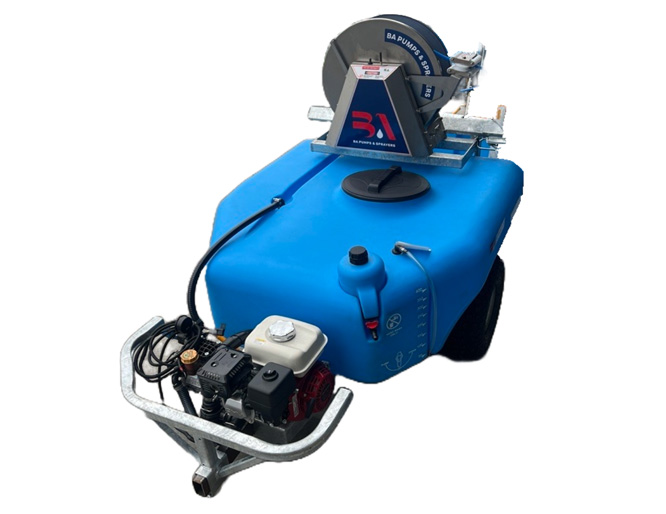

400L spray unit with high-pressure pump and auto-retracting 100m hose reel for gun spraying work.
![TSX400-430HP](https://der0u4l55orz6.cloudfront.net/2023/01/26143243/666-x-514-TSX400-430HP-1.jpg)
TSX400-430HP
400L spray unit fitted with hort boom spraying left and right simultaneously.
Models
Filter by:
TSX400-2030SP
400L, 30M Hose Reel
TSX400-430SP
400L, 50M Hose Reel
TSX400-430-QR100
400L, 100M Hose Reel
TSX400-430HP
400L, 4X4 Hort Boom
Model
Tank Size
Boom
Pump
Reel
Dimensions
TSX400-2030SP
400L
3m, 4.5m, 6m
Bertolini POLY2030 | 30LPM | 280PSI
30M EZI-Reel
2397 x 1200 x 1120
More
Compare
Enquire
TSX400-430SP
400L
-
Bertolini PA430 | 40LPM | 580PSI
50M MAXI-Reel
2398 x 1200 x 1280
More
Compare
Enquire
TSX400-430-QR100
400L
-
Bertolini PA430 | 40LPM | 580PSI
QUIKSPRAY 100M 12V remote retractable reel
2399 x 1200 x 1560
More
Compare
Enquire
TSX400-430HP
400L
4x4 Hort Boom
Bertolini PA430 | 40LPM | 580PSI
Optional
2400 x 1200 x 1500
More
Compare
Enquire
Model Specifications
Model Specifications
400L general purpose spray unit for medium-pressure gun boom spraying - 30m reel standard. Various boom spray options are available.
Tank Size
400L
Pump
Bertolini POLY2030 | 30LPM | 280PSI
Filter
50 Mesh Filter
Motor
Honda GX160
Reel
30M EZI-Reel
Spray System
SPOT300 Spray Gun
Boom
3m, 4.5m, 6m
Control
Karin two tap pressure regulator
Dry Weight
129KG
Dimensions
2397 x 1200 x 1120
400L general purpose spray unit for high-pressure gun work - 50m reel standard. Various boom spray options are available.
Tank Size
400L
Pump
Bertolini PA430 | 40LPM | 580PSI
Filter
50 Mesh Filter
Motor
Honda GX160
Reel
50M MAXI-Reel
Spray System
SPOT300 Spray Gun
Boom
-
Control
Karin two tap pressure regulator
Dry Weight
140KG
Dimensions
2398 x 1200 x 1280
400L spray unit with high-pressure pump and auto-retracting 100m hose reel for gun spraying work.
Tank Size
400L
Pump
Bertolini PA430 | 40LPM | 580PSI
Filter
50 Mesh Filter
Motor
Honda GX160
Reel
QUIKSPRAY 100M 12V remote retractable reel
Spray System
SPOT300 Spray Gun
Boom
-
Control
Karin two tap pressure regulator
Dry Weight
154KG
Dimensions
2399 x 1200 x 1560
Tank Size
400L
Pump
Bertolini PA430 | 40LPM | 580PSI
Filter
50 Mesh Filter
Motor
Honda GX160
Reel
Optional
Spray System
-
Boom
4x4 Hort Boom
Control
Karin two tap pressure regulator
Dry Weight
132KG
Dimensions
2400 x 1200 x 1500
![TSX400-2030SP](https://der0u4l55orz6.cloudfront.net/2023/01/26143243/666-x-514-TSX400-2030SP-1.jpg)
![TSX400-430SP](https://der0u4l55orz6.cloudfront.net/2023/01/26143243/666-x-514-TSX400-430SP-1.jpg)
![TSX400-430H-QR100](https://der0u4l55orz6.cloudfront.net/2023/01/26143243/666-x-514-TSX400-430-QR100-1.jpg)
![TSX400-430HP](https://der0u4l55orz6.cloudfront.net/2023/01/26143243/666-x-514-TSX400-430HP-1.jpg)
Model Specifications
1
Try comparing to:
2
Try comparing to:
3
Try comparing to:
1
Items for comparison
[Reset]
Upgrades & Accessories
![Protection Bar](https://der0u4l55orz6.cloudfront.net/2022/12/26143304/My-project-1-31.jpg)

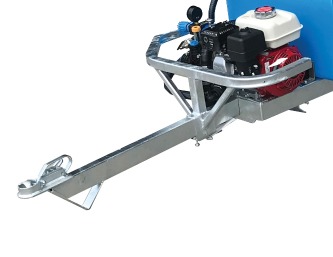

Protection Bar
![Protection Bar](https://der0u4l55orz6.cloudfront.net/2022/12/26143304/My-project-1-31.jpg)
Protection Bar
Protect pump and motor from accidents.
![Smart-Fit XP BoomJet Boomless Nozzle Kit](https://der0u4l55orz6.cloudfront.net/2022/12/26143304/My-project-1-36.jpg)

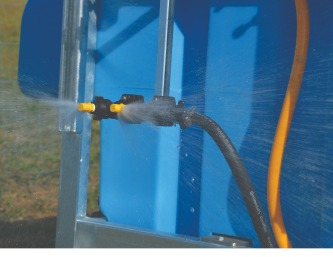

Smart-Fit XP BoomJet Boomless Nozzle Kit
![Smart-Fit XP BoomJet Boomless Nozzle Kit](https://der0u4l55orz6.cloudfront.net/2022/12/26143304/My-project-1-36.jpg)
Smart-Fit XP BoomJet Boomless Nozzle Kit
Sprays up to a 6m swath. Available in three nozzle sizes. Includes angle bracket for easy mounting.
![Smart-Fit On/Off Kit](https://der0u4l55orz6.cloudfront.net/2022/12/26143243/333-x-257-Smart-Fit-On_Off-Kit-1.jpg)
Smart-Fit In-Cab Electric On/Off Control Kit
![Smart-Fit On/Off Kit](https://der0u4l55orz6.cloudfront.net/2022/12/26143243/333-x-257-Smart-Fit-On_Off-Kit-1.jpg)
Smart-Fit In-Cab Electric On/Off Control Kit
Enables you to turn the 2XP BoomJet nozzles or boom sprayer on/off from the cab.
![TSX Smart-Fit Folding Spray Boom](https://der0u4l55orz6.cloudfront.net/2023/03/26143222/333-x-257-TSX-Smart-Fit-Folding-Spray-Boom-1.jpg)

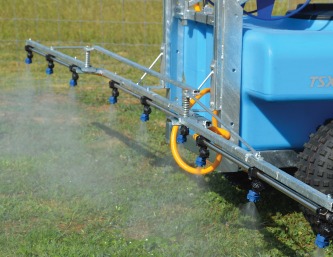

TSX Smart-Fit Folding Spray Boom
![TSX Smart-Fit Folding Spray Boom](https://der0u4l55orz6.cloudfront.net/2023/03/26143222/333-x-257-TSX-Smart-Fit-Folding-Spray-Boom-1.jpg)
TSX Smart-Fit Folding Spray Boom
Available in 3, 4.5 or 6 metre boom lengths. Fitted with TeeJet AIXR nozzles.
