Trailed Sprayers, Hort and Vit Sprayers and Equipment
400-650L Hort Packs

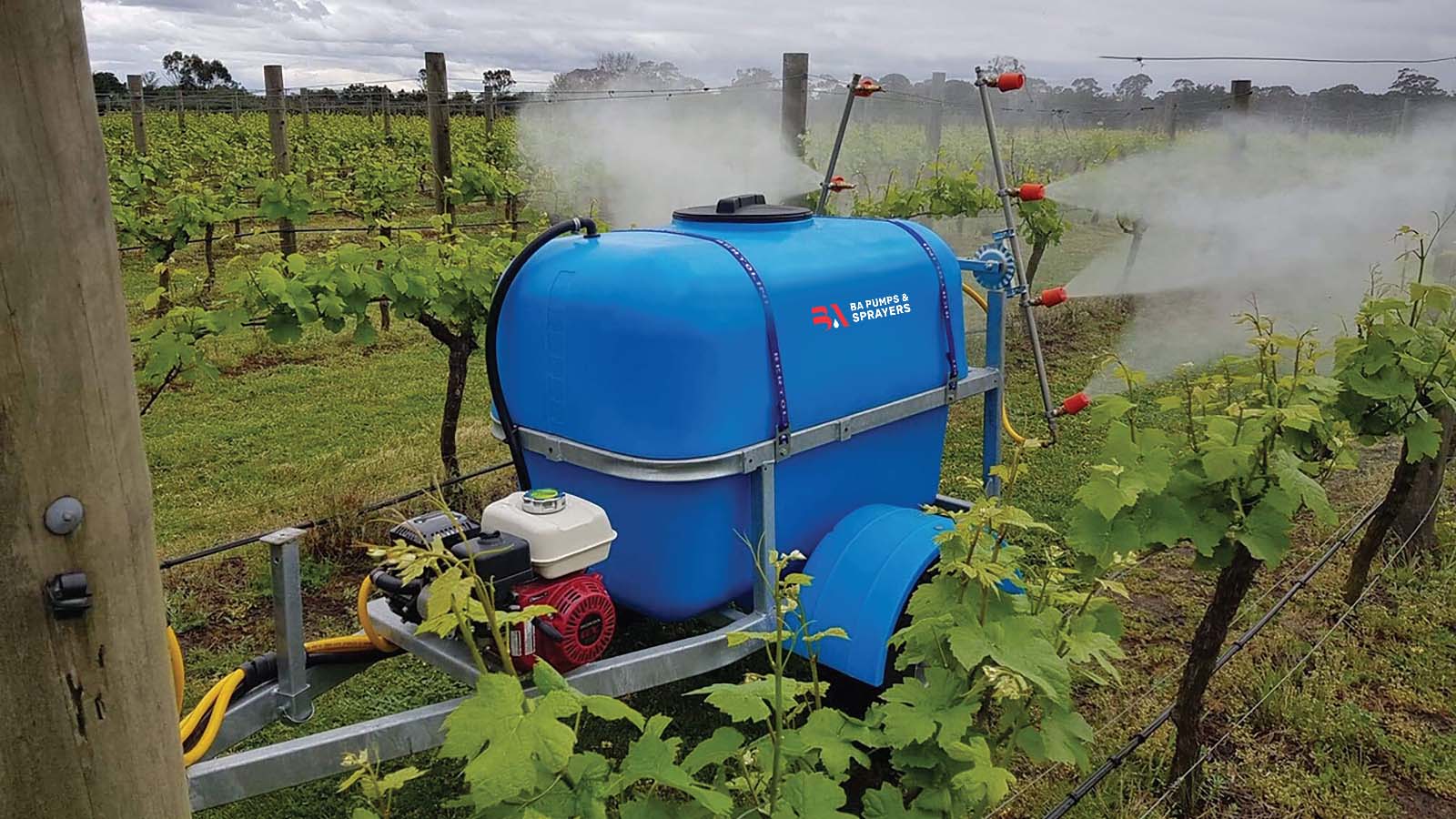

![BA650-HP Hort Spraying](https://der0u4l55orz6.cloudfront.net/2023/01/26143156/1600-x-900-BA650.jpg)
Available as a trailed or 3PTL sprayer, BA Hort Packs feature a BA 4 x 4 Hort Boom for easy targeting into the crop.
Bertolini
PA Series
Diaphragm Pump
4x4
M
Hort Boom
![](https://bapumpsandsprayers.co.nz/wp-content/themes/baps/images/bg-info.png)

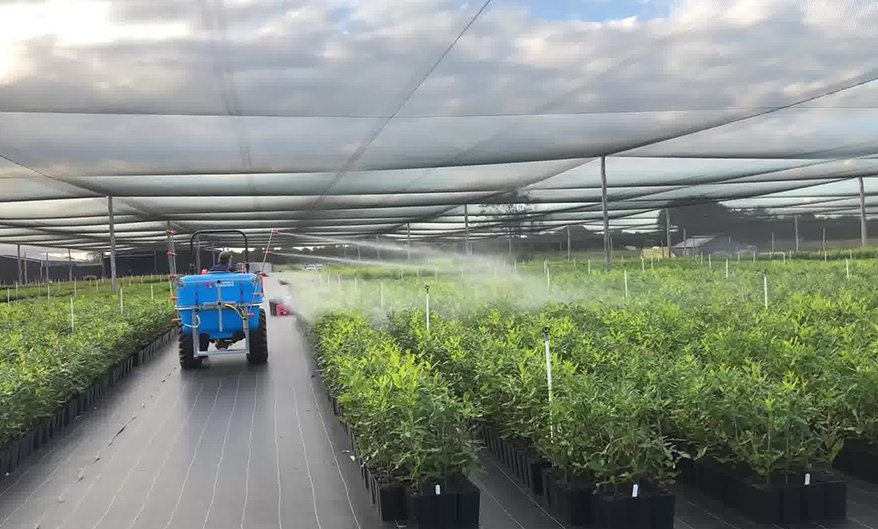

![Hort Pack Sprayer spraying a garden nursery](https://der0u4l55orz6.cloudfront.net/2022/11/26143348/Product-Page-Overview-Image-Hort-Pack-Sprayer-878x529-1.jpg)
Specialists in Hort Spraying
Standard Features:
- Available as trailed or 3PTL – See models for details.
- UV rated tank and galvanised frame.
- Bertolini diaphragm pump and Bertolini manual 2 tap control.
- BA 4 x 4 (4 short barrel nozzles per side) Hort Boom.
- Adjustable nozzle spray pattern from a cone to a straight jet and mounted on an adjustable ball for easy targeting into the crop.
BA Hort Pack Product Range
![TSX400-430HP](https://der0u4l55orz6.cloudfront.net/2023/01/26143243/666-x-514-TSX400-430HP-1.jpg)

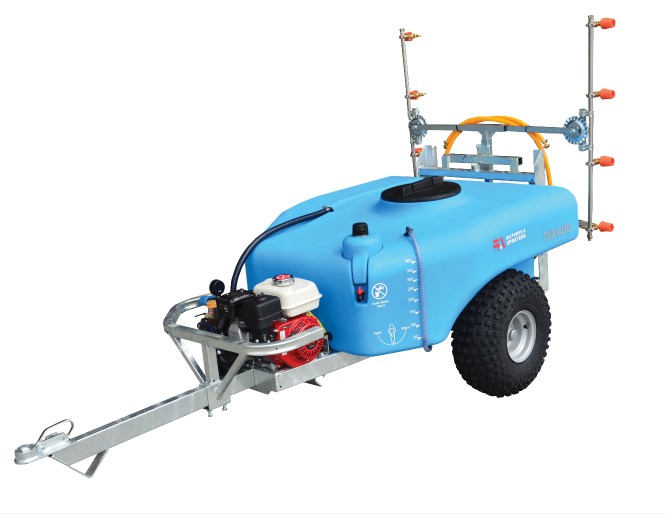

TSX400-430HP
400L spray unit fitted with hort boom spraying left and right simultaneously.
![Hort Pack Trailed Sprayer](https://der0u4l55orz6.cloudfront.net/2023/05/26143156/666-x-514-Hort-Pack-Trailed-Sprayer.jpg)

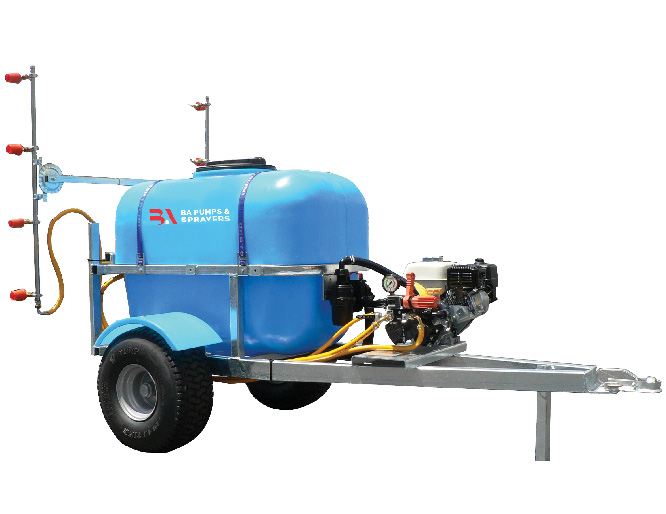

BAT650-430HP
650L trailed sprayer designed for horticultural applications.
![Hort Pack Linkage Sprayer](https://der0u4l55orz6.cloudfront.net/2023/05/26143156/666-x-514-Hort-Pack-Linkage-Sprayer.jpg)

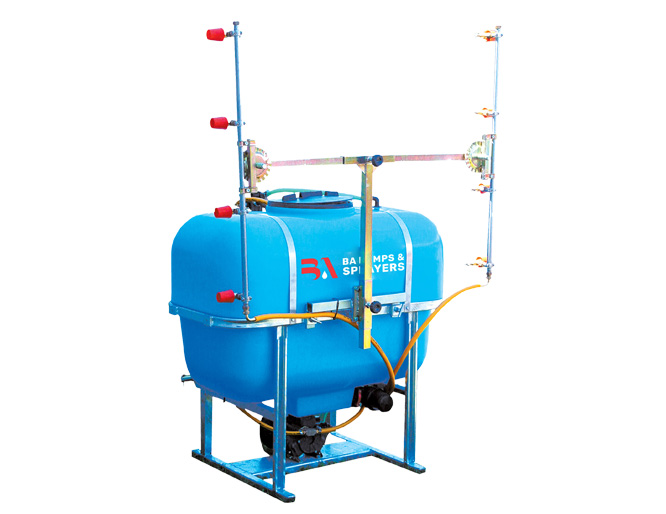

BA003-430HP & BA001-530HP
Available in 400L or 650L tank sizes this linkage sprayer is suitable for fitting on the back of a small tractor to use within a facility with small trees or tall plants. See model specs for specific details.
Models
Filter by:
TSX400-430HP
400L, 4X4 Hort Boom
BAT650-430HP
650L, 40LPM, Hort Boom
BA001-530HP
650L, 54LPM, 580PSI
BA003-430HP
400L, 40LPM, 580PSI
Model
Tank Size
Boom
Pump
Control
TSX400-430HP
400L
4x4 Hort Boom
Bertolini PA430 | 40LPM | 580PSI
Karin two tap pressure regulator
More
Compare
Enquire
BAT650-430HP
650L
4x4 Hort Boom
PA430 | 40LPM | 580PSI
Karin 2 Tap
More
Compare
Enquire
BA001-530HP
650L
4x4 Hort Boom
Bertolini PA530 Pump | 54LPM | 580PSI
-
More
Compare
Enquire
BA003-430HP
400L
4x4 Hort Boom
Bertolini PA430 | 40LPM | 580PSI
-
More
Compare
Enquire
Model Specifications
Model Specifications
Tank Size
400L
Boom
4x4 Hort Boom
Pump
Bertolini PA430 | 40LPM | 580PSI
Control
Karin two tap pressure regulator
Dry Weight
132KG
Filter
50 Mesh Filter
Motor
Honda GX160
Reel
Optional
Dimensions
2400 x 1200 x 1500
Nozzles
-
650L trailed sprayer designed for horticultural applications.
Tank Size
650L
Boom
4x4 Hort Boom
Pump
PA430 | 40LPM | 580PSI
Control
Karin 2 Tap
Dry Weight
-
Filter
-
Motor
-
Reel
-
Dimensions
-
Nozzles
Short Barrel
650L 3 point linkage sprayer.
Tank Size
650L
Boom
4x4 Hort Boom
Pump
Bertolini PA530 Pump | 54LPM | 580PSI
Control
-
Dry Weight
-
Filter
-
Motor
-
Reel
-
Dimensions
-
Nozzles
Barrel Nozzles
Available as 400L 3 Point Linkage Sprayer.
Tank Size
400L
Boom
4x4 Hort Boom
Pump
Bertolini PA430 | 40LPM | 580PSI
Control
-
Dry Weight
-
Filter
-
Motor
-
Reel
-
Dimensions
-
Nozzles
Barrel Nozzles
![TSX400-430HP](https://der0u4l55orz6.cloudfront.net/2023/01/26143243/666-x-514-TSX400-430HP-1.jpg)
![Hort Pack Trailed Sprayer](https://der0u4l55orz6.cloudfront.net/2023/05/26143156/666-x-514-Hort-Pack-Trailed-Sprayer.jpg)
![Hort Pack Linkage Sprayer](https://der0u4l55orz6.cloudfront.net/2023/05/26143156/666-x-514-Hort-Pack-Linkage-Sprayer.jpg)
![Hort Pack Linkage Sprayer](https://der0u4l55orz6.cloudfront.net/2023/05/26143156/666-x-514-Hort-Pack-Linkage-Sprayer.jpg)
Model Specifications
1
Try comparing to:
2
Try comparing to:
3
Try comparing to:
1
Items for comparison
[Reset]
Upgrades & Accessories
![5 x 5 Hort Boom](https://der0u4l55orz6.cloudfront.net/2022/12/31113941/My-project-1-20-1.jpg)
5 x 5 Boom
![5 x 5 Hort Boom](https://der0u4l55orz6.cloudfront.net/2022/12/31113941/My-project-1-20-1.jpg)
5 x 5 Boom
10 spray nozzles each one is adjustable from a cone to a jet. Adjustable width and height.
Remote Mount Control With 2.5m Hoses
Remote Mount Control With 2.5m Hoses

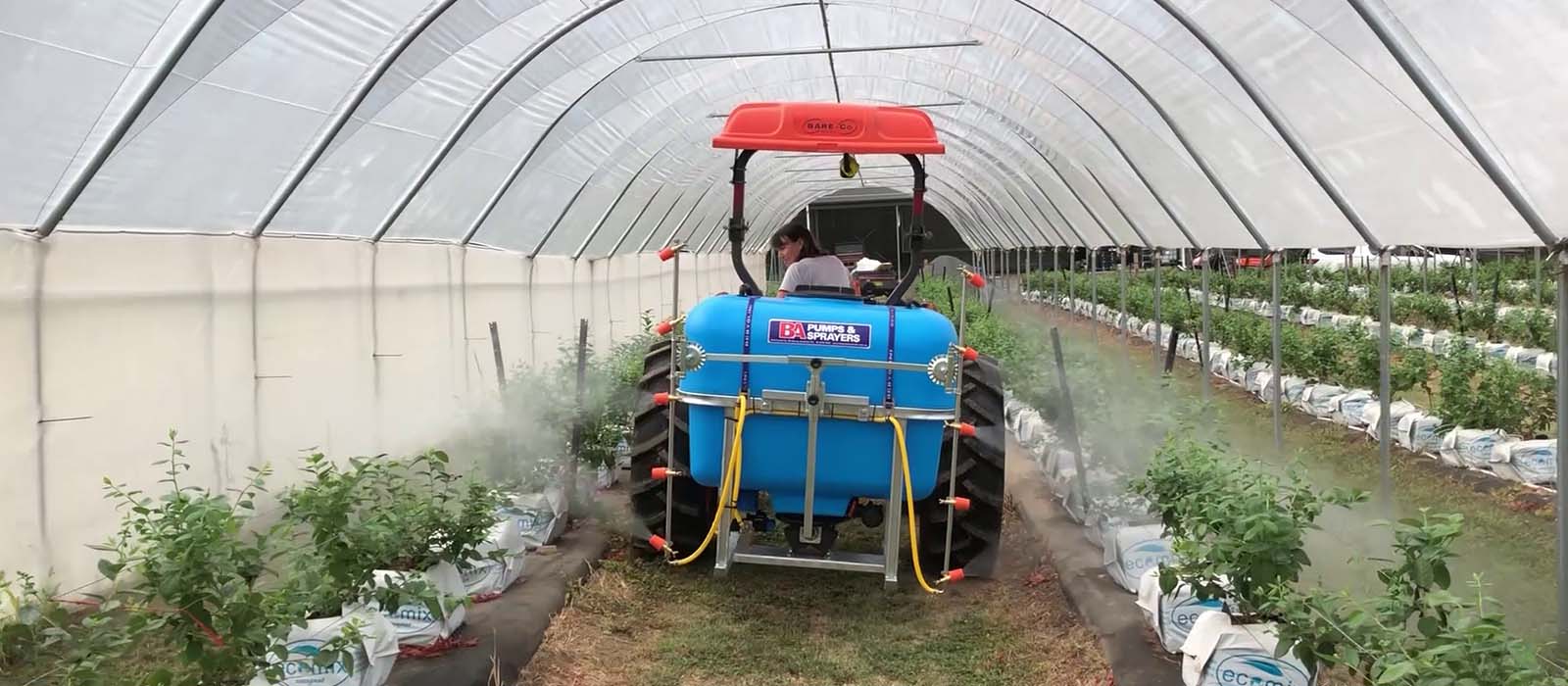

SEE IT IN ACTION HERE
![BA650-430HP in action](https://der0u4l55orz6.cloudfront.net/2023/01/26143156/1600-x-700-BA650-430HP-in-action.jpg)
![Parts and Servicing](https://der0u4l55orz6.cloudfront.net/2022/10/26143440/Image.jpg)
Local Service & Support
We have a network of dealers nationwide who can help supply you with:
- Local knowledge and expertise
- Trusted support & servicing
