Linkage Sprayers

1000-1300L LS Series

Download Brochures & Manuals

Downloads

Enquire

6 MODELS

From

$28,999

+GST

The feature-packed LS Series is ideal for vegetable growers or small crops, turf growers, and larger pastoralists no matter the terrain.

The flexible design can be upgraded to suit the highest level of precision farming.

12-15

Boom Length

126

LPM

Bertolini Pumps

ISOBUS

Compatible

6 MODELS

From

$28,999

+GST

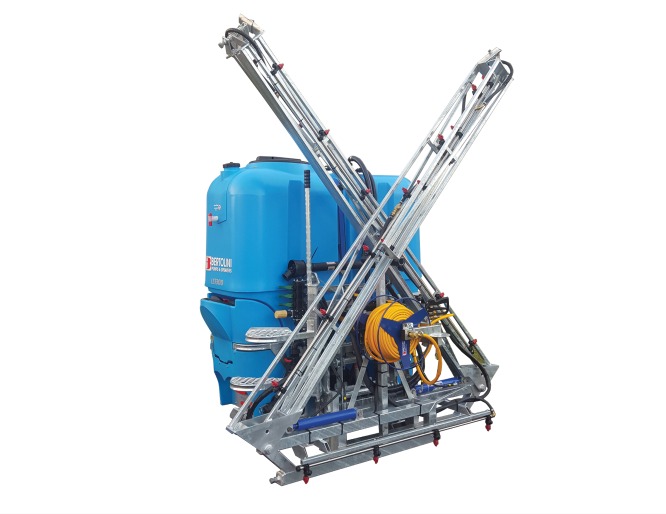

LS1000-2136-12H

1000L, 12M Semi-Hydraulic K Boom

LS1000-2136-12X2

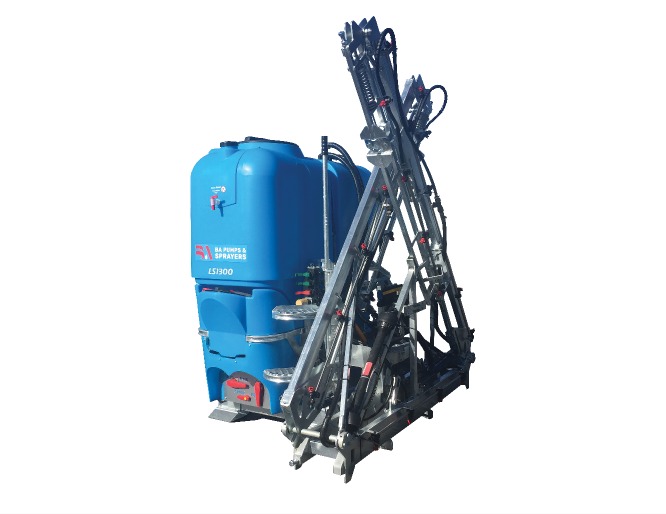

1000L, 12M X2 Hydraulic Boom

LS1000-2136-15X2

1000L, 15M X2 Hydraulic Boom

LS1300-2136-12H

1300L, 12M K Semi-Hydralic Boom

LS1300-2136-12X2

1300L, 12M X2 Hydraulic Boom

LS1300-2136-15X2

1300L, 15M X2 Boom

Built Strong to Perform

Standard features include:

PTO-driven Bertolini poly pump with 126LPM delivery.
Double 3PTL plates – strongest in its class. BA ‘Strong Link’ ties the front and rear frame for superior strength.
Easy-to-read, tank-level, sight tube.
Chemical induction hopper with container rinse function.
Easy access controls at a safe working height.
BA control station for spray/flush tank selection or chemical induction and tank drain.
4 Stage Filtration for reduced nozzle blockages and extended component life. Fitted with a large 50mesh suction filter, dual 80/100 mesh TeeJet pressure filters, and individual nozzle strainers.
Smart Flush 105 litre flush tank for easy decontamination.
Forklift pockets.
Storage points for hydraulic hoses.
ISOBUS compatible.
Select your hydraulic boom option, lift, or suspension add-on, and any control upgrades.

CLICK TO WATCH THE LS IN ACTION

Features

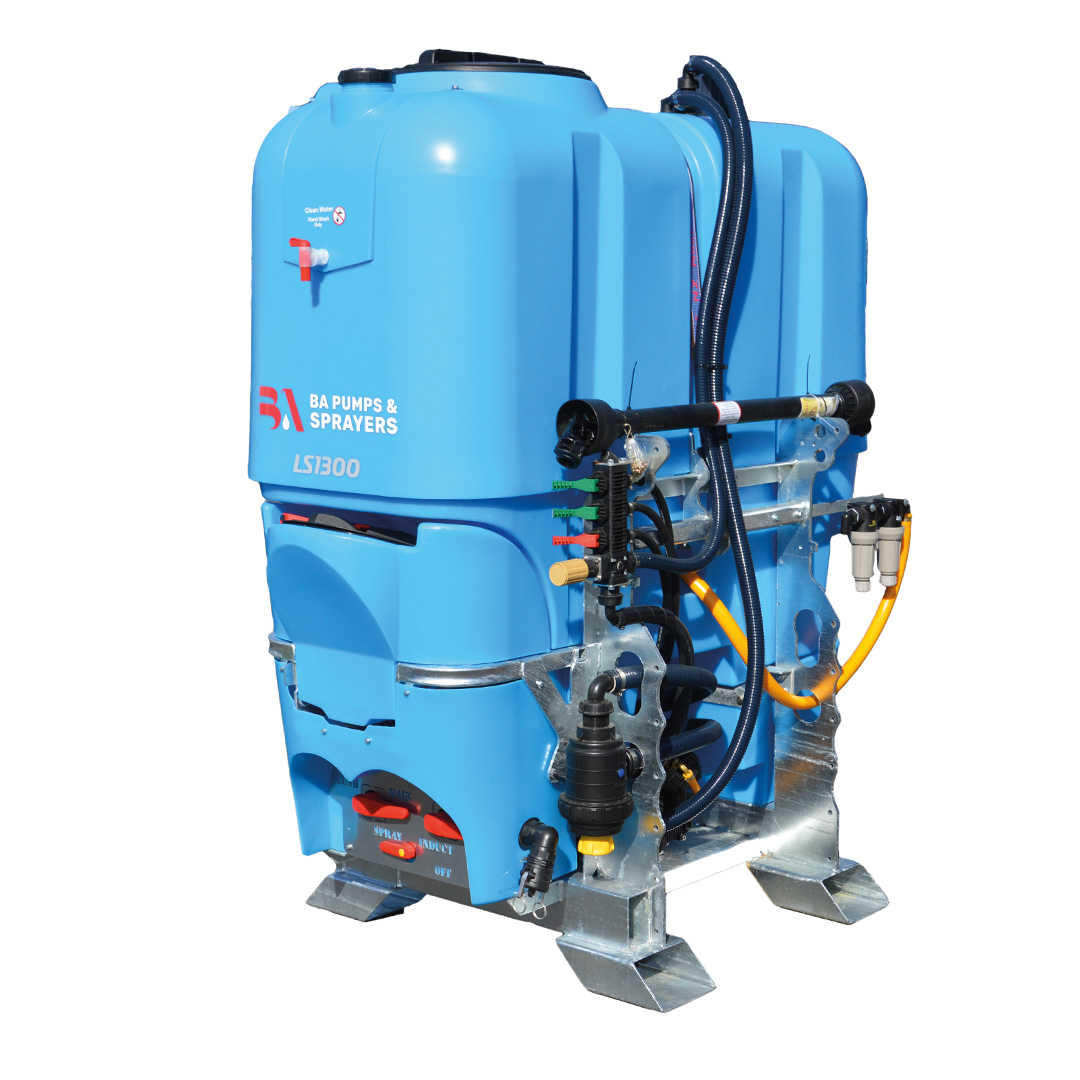

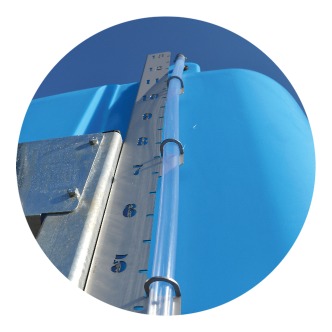

Clear tank gauge for easy operator viewing from the tractor cab.

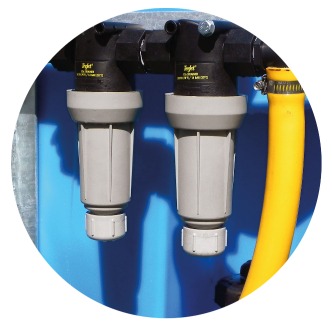

Dual spray boom pressure filters, 50 and 100 mesh to eliminate individual nozzle strainers and blocked nozzles.

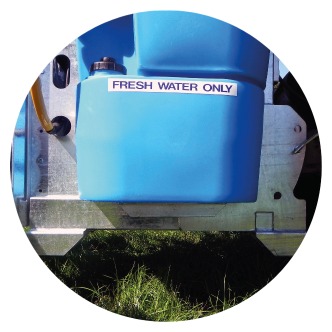

Smart Flush 105L onboard flush tank.

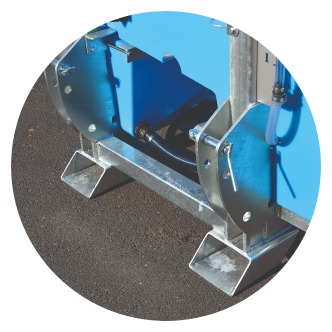

100 x 75 and 75 x 75 RHS CAT2 frame, HD double 3PTL plates, strongest in its class. BA designed "Strong Link' ties the front and rear frame together for superior strength.

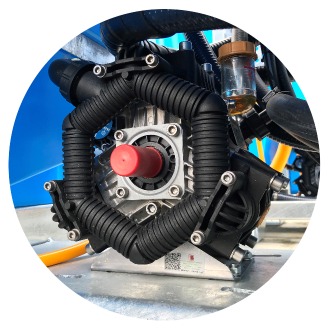

Bertolini POLY2136 pump specifically suited for weed control and liquid fertiliser treatment.

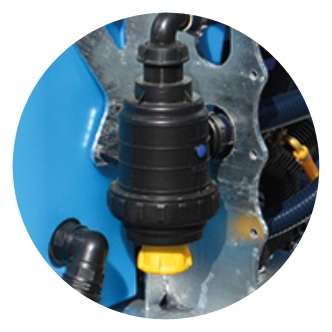

Large capacity main suction filter. Camlock capped main drain, bottom entry fill point.

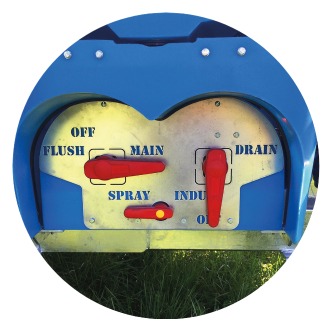

BA control station for spray/flush tank selection or chemical induction tank drain.

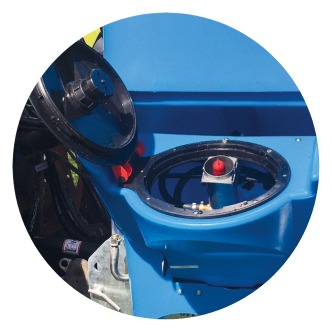

Rota-Mix 30 chemical induction hopper with container rinse function. Easy access controls at a safe working height.

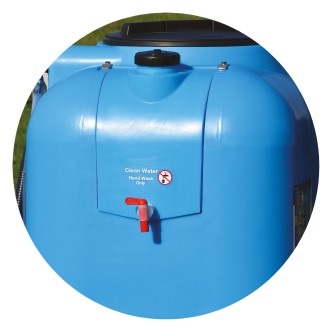

Integrated 10L hand wash tank for user safety.

What our customers say

The most outstanding feature though was the BA Super X2 12 metre hydraulic boom: “The strength of the engineering stood out compared to other sprayers and could see it would be tough enough to handle what we throw at it.”

Logan Wallace, South Otago

LS 1300 Litre tank with 12 Metre Hydraulic Boom and Lift

“The boom structure was what caught my eye on this sprayer because of its durability. The hydraulics were also a big draw card as it means the operator can control the boom from inside the cab, which saves time but also keeps them safe by not having to get out and fold the boom manually."

Jeremy Walsh, Jeremy Walsh Viticulture Management

LS1300 with 12M hydraulic boom

“The benefits of upgrading our sprayer were we could increase capacity and improve efficiency. The larger tank and boom mean we can now spray further for longer with fewer fill-ups which saves us heaps of time.”

Richard Brewer, Brewer Farms

LS 1300 Litre tank with 12 Metre semi-hydraulic boom

I made the switch to BA because of the galvanised frames. Previous booms I’d used were painted and I was having trouble with corrosion. An additional benefit of BA is the New Zealand sized steel. It’s consistent sizing and reflective of their New Zealand made product. Their technology is also good.

Bruce Rollinson, Snow Country Gardens, Ohakune

LS1300 Fitted With 16m Super X-2 Hydraulic Fold Spray Boom

“The built-in induction hopper significantly enhances safety during chemical handling operations as we don’t have to lift heavy drums and can do everything from waist height.”

Logan Wallace, South Otago

LS 1300 Litre tank with 12 Metre Hydraulic Boom and Lift

Some of our country is steep and rocky, we required a sprayer that could handle the hard conditions. The boom is tougher than anything we’ve had in the past and I’ve recommended it to others in the area because of this.”

Ben Lomond, NSW

LS1000 fitted with 12 metre Super-X boom

We love it! The LS1000 is great, but with the addition of the Rate Controller and Hexagon GPS, our precision of application is saving us time and money. It’s such a great system and has everything we need to get the job done. We’re so happy in fact, that we’ve recommended it to everyone we know!

Ed Moorhead, NSW

LS1000 Linkage Sprayer with Rate Controller

Everything on the unit is galvanised rather than painted, which is great because the chemicals I use can be quite corrosive. When you’ve got someone who thinks out their products well, why would you buy from anywhere else?

Mike Migounoff, Mike's Lifestyle Block Services, Pukekohe

DM300-430-QR50

“The boom lift provides us with the necessary reach and flexibility to navigate the unevenness of the property efficiently, and I can operate it all from the inside of the cab.”

Logan Wallace, South Otago

LS 1300 Litre tank with 12 Metre Hydraulic Boom and Lift

Models

Filter by:

LS1000-2136-12H

1000L, 12M Semi-Hydraulic K Boom

LS1000-2136-12X2

1000L, 12M X2 Hydraulic Boom

LS1000-2136-15X2

1000L, 15M X2 Hydraulic Boom

LS1300-2136-12H

1300L, 12M K Semi-Hydralic Boom

LS1300-2136-12X2

1300L, 12M X2 Hydraulic Boom

LS1300-2136-15X2

1300L, 15M X2 Boom

Model

Tank Size

Boom

Pump

Control

Chemical Induction

LS1000-2136-12H

1000L

12m K-Series

Bertolini POLY2136 Liquid Fertiliser Pump | 126LPM | 217PSI

3 section in-cab electric control

Rota-Mix chemical induction hopper

Compare

Enquire

LS1000-2136-12X2

1000L

12m

Bertolini POLY2136 Liquid Fertiliser Pump | 126LPM | 217PSI

3 section in-cab electric control with pressure gauge

Rota-Mix 30 Chemical Induction Hopper with container rinse nozzle

Compare

Enquire

LS1000-2136-15X2

1000L

15m

Bertolini POLY2136 Liquid Fertiliser Pump | 126LPM | 217PSI

3 section in-cab electric control with pressure gauge

Rota-Mix 30 Chemical Induction Hopper with container rinse nozzle

Compare

Enquire

LS1300-2136-12H

1300L

12m K-Series

Bertolini POLY2136 Liquid Fertiliser Pump | 126LPM | 217PSI

3 section in-cab electric control with pressure gauge

Rota-Mix 30 Chemical Induction Hopper with container rinse nozzle

Compare

Enquire

LS1300-2136-12X2

1300L

12m

Bertolini POLY2136 Liquid Fertiliser Pump | 126LPM | 217PSI

3 Section electric in cab controller with pressure adjustment

ROTA-MIX 30L Hopper

Compare

Enquire

LS1300-2136-15X2

1300L

15m

Bertolini POLY2136 Liquid Fertiliser Pump | 126LPM | 217PSI

3 section in-cab electric control with pressure gauge

Rota-Mix 30 Chemical Induction Hopper with container rinse nozzle

Compare

Enquire

Items for comparison

[Reset]

Upgrades & Accessories

Ask us about this

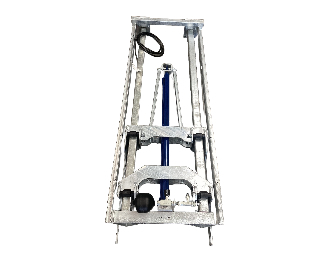

Boom Lift Mast

Suits booms up to 18 metres, supplied with a hydraulic ram, hose, and coupler.

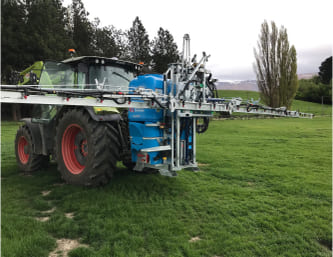

Hydraulic Boom Lift With Integrated Accumulator Suspension

Runs smoothly on nylon rollers with ‘boom yaw' compensation built into the uprights.

Airbag Boom Suspension

Airbag boom suspension offers increased boom stability and extended boom life.

TeeJet AutoRate Control

The TeeJet AutoRate compensates for speed variations to maintain a constant application rate.

GPS Units

Work faster and easier with our range of TeeJet Matrix and Hexagon Ti Series GPS units.

Bertolini Section Valves

Upgrade to increase boom section to 5, 7 or 9.

ISOBUS Module

A multi-platform autorate spray controller designed to interface directly with existing Isobus plug.

POLY2180 Pump

High flow 170LPM pump for large booms and water rates.

ARAG Foam Marker

Includes compressor, concentrate tank, mounting brackets, switch box, wiring loom, and a hose kit.

Diaphram Pump Hyraulic Drive

Diaphram Pump Hyraulic Drive

Hydraulic drive motor with a constant speed valve which maintains the motor speed of 540 RPM.

TeeJet XP Boomjet Fenceline Nozzle

Includes solenoid and in-cab switch to easily spray fence lines with up to 3m coverage.

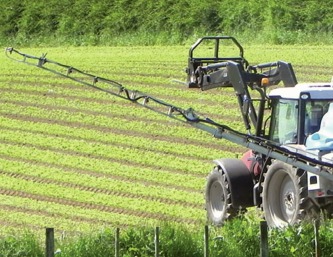

X2 Winglift

Allows operator to lift entire left or right boom arms. Also has the option to tip fold.

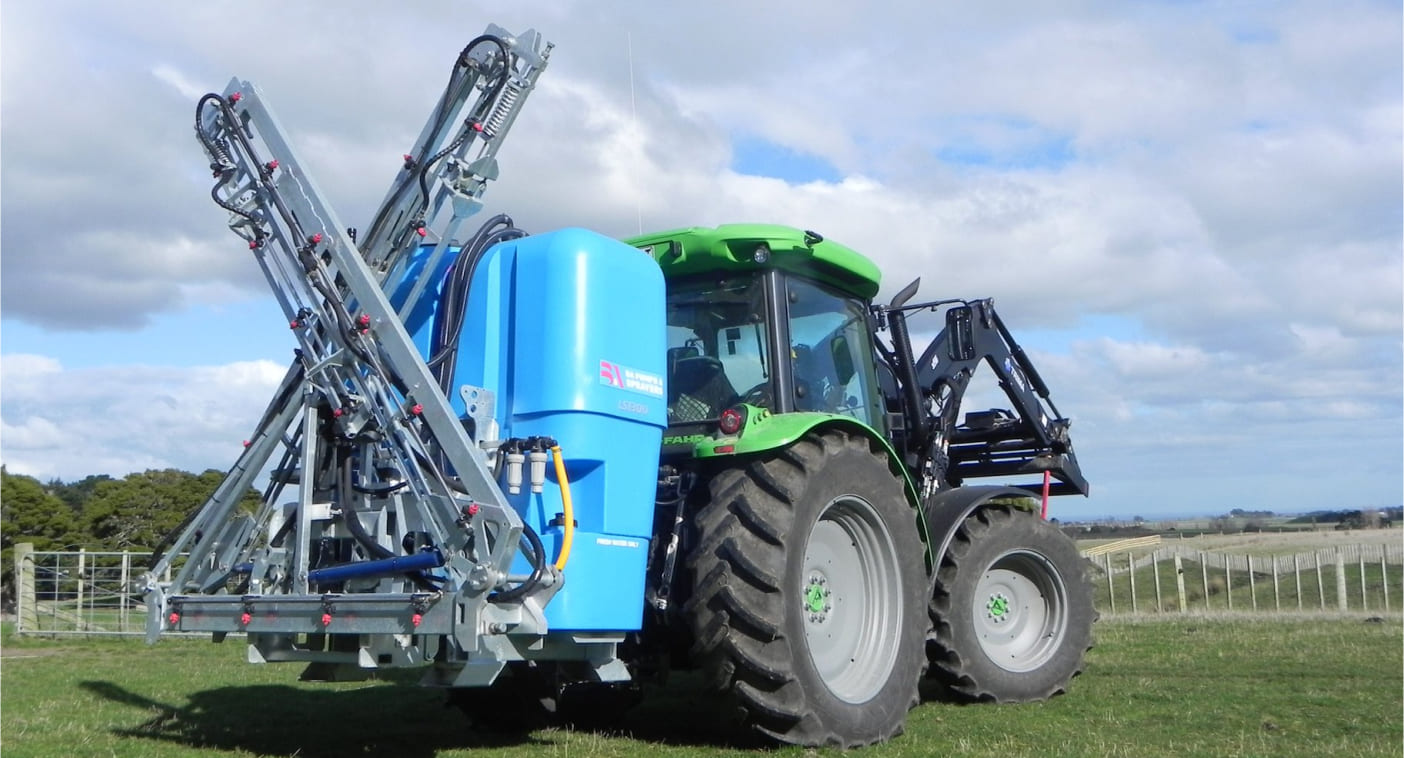

LS with boom closed on the back of a tractor

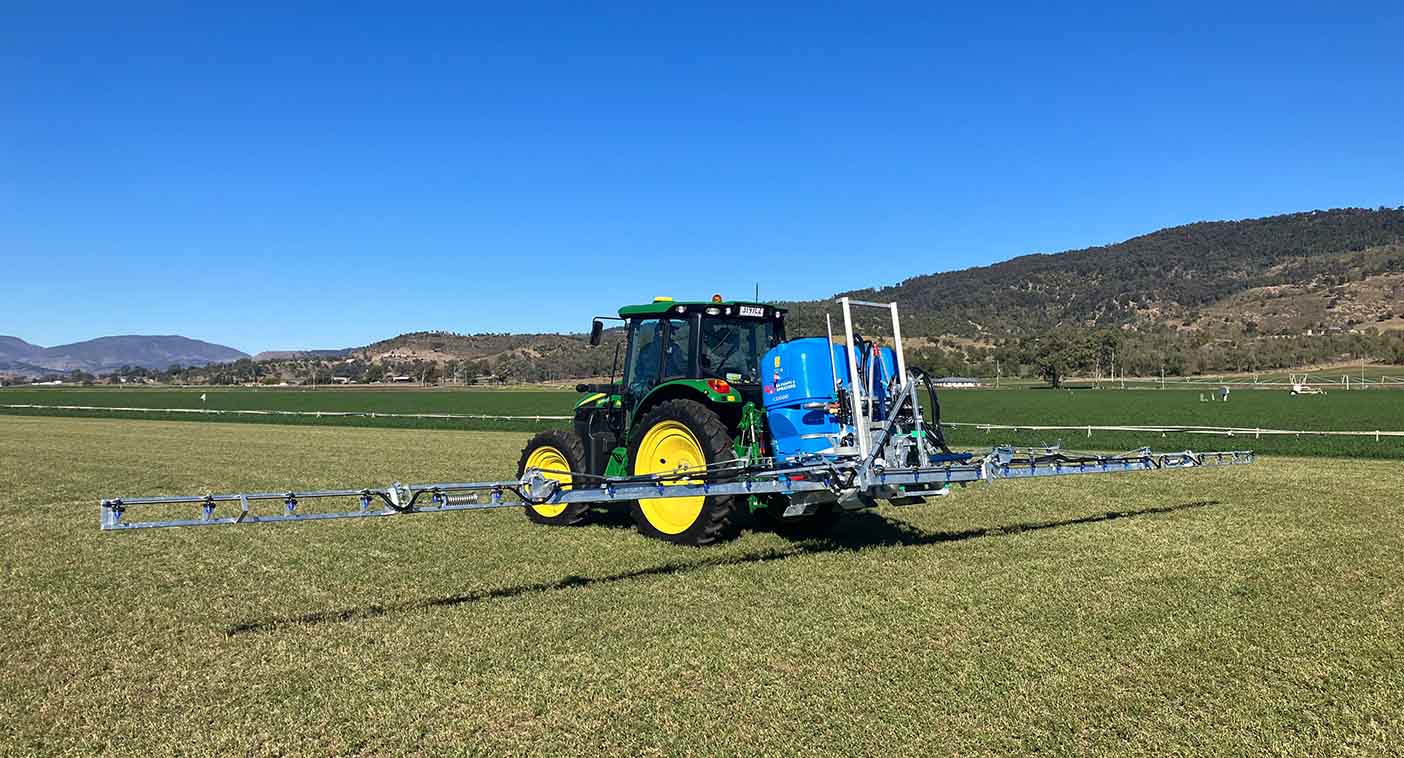

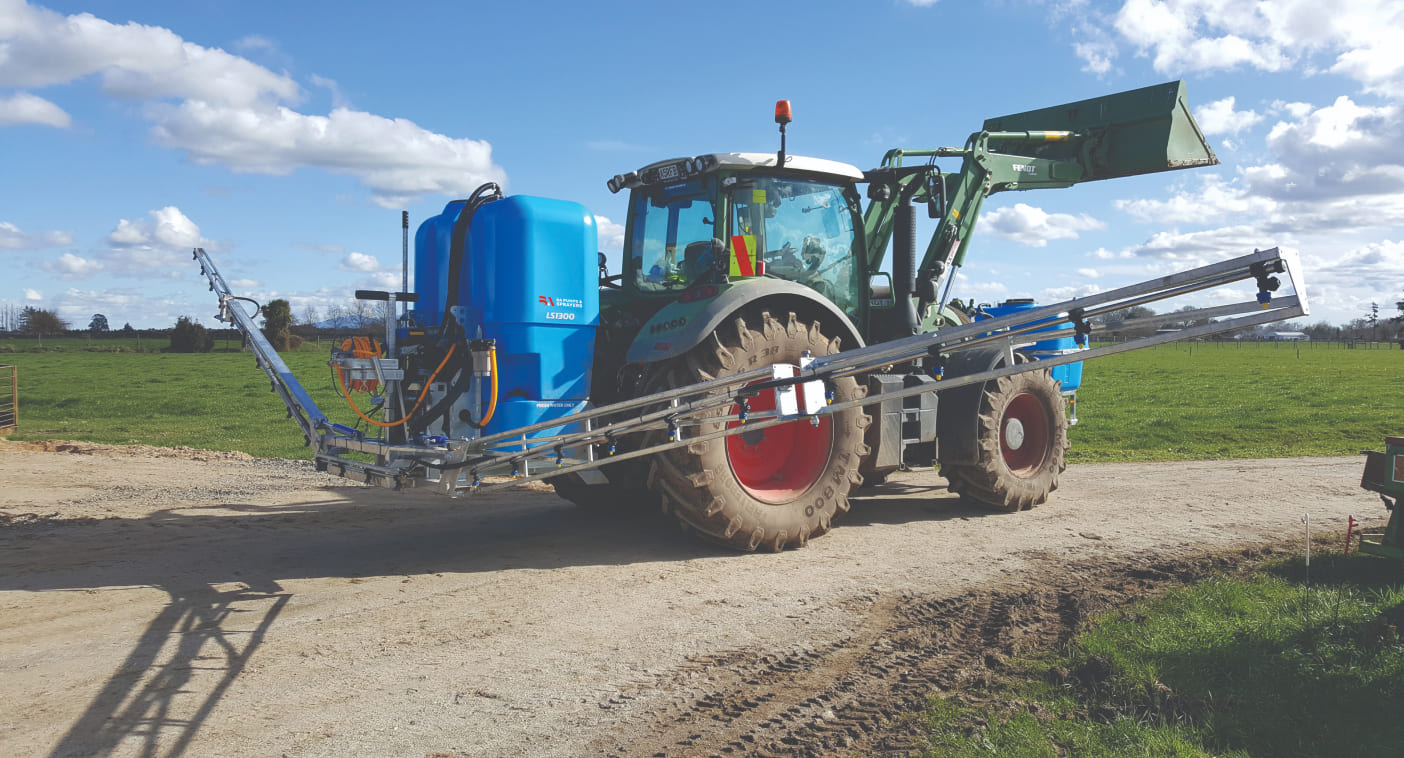

LS on the back of a tractor with open boom
